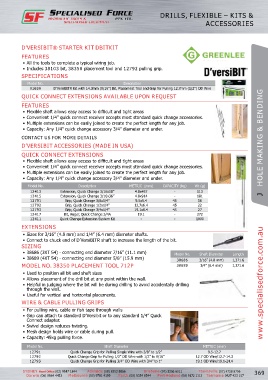

Page 381 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

DRILLS, FLEXIBLE – KITS &
ACCESSORIES

D’VERSIBIT® STARTER KIT DBITKIT

FEATURES
• All the tools to complete a typical wiring job.
• Includes 38103 bit, 38350 placement tool and 12792 pulling grip.
SPECIFICATIONS
Model No. Description
01630 D’VersiBITR Kit with 14.3mm (9/16”) Bit, Placement Tool and Grip for Pulling 12.7mm (1/2”) OD Wire
QUICK CONNECT EXTENSIONS AVAILABLE UPON REQUEST
FEATURES
• Flexible shaft allows easy access to difficult and tight areas
• Convenient 1/4” quick connect receiver accepts most standard quick change accessories.
• Multiple extensions can be easily joined to create the perfect length for any job.
• Capacity: Any 1/4” quick change accessory 3/4” diameter and under.
CONTACT US FOR MORE DETAILS
D’VERSIBIT ACCESSORIES (MADE IN USA) J HOLE MAKING & BENDING

QUICK CONNECT EXTENSIONS
• Flexible shaft allows easy access to difficult and tight areas
• Convenient 1/4” quick connect receiver accepts most standard quick change accessories.
• Multiple extensions can be easily joined to create the perfect length for any job.
• Capacity: Any 1/4” quick change accessory 3/4” diameter and under.

Model No. Description METRIC (mm) CAPACITY (kg) Wt (g)
12413 Extension, Quick Change 3/16x18” 4.8x457 - 113
12415 Extension, Quick Change 3/16x36” 4.8x914 - 181
12791 Grip, Quick Change 3/8x1/4” 9.5x6.4 45 18
12792 Grip, Quick Change 1/2x1/4” 12.7x6.4 45 22
12793 Grip, Quick Change 3/4x1/4” 19.1x6.4 45 27
12417 Bit, Auger, Quick Change 3/4A 19.1 - 272
12411 Quick Change Extension System Kit - - 1000
EXTENSIONS
• Sizes for 3/16” (4.8 mm) and 1/4” (6.4 mm) diameter shafts.
• Connect to chuck end of D’VersiBITR shaft to increase the length of the bit.
SIZING
• 38686 (3XT 54) - connecting end diameter 7/16” (11.1 mm) Model No. Shaft Diameter Length
• 38689 (4XT 54) - connecting end diameter 5/8” (15.9 mm) 38686 3/16” (4.8 mm) 1,371.6
MODEL NO. 38350 PLACEMENT TOOL 712P 38689 1/4” (6.4 mm) 1,371.6

• Used to position all bit and shaft sizes
• Allows placement of the drill bit at any point within the wall.
• Helpful in judging where the bit will be during drilling to avoid accidentally drilling www.specialisedforce.com.au
through the wall.
• Useful for vertical and horizontal placements.
WIRE & CABLE PULLING GRIPS
• For pulling wire, cable or fish tape through walls
• Grip can attach to standard D’Versibit or to any standard 1/4” Quick
Connect adapter.
• Swivel design reduces twisting.
• Mesh design holds wire or cable during pull.
• Capacity: 45kg pulling force.
Model No. Shaft Diameter METRIC (mm)
12791 Quick Change Grip for Pulling Single Wire with 3/8” to 1/2” 9.5-12.7
12792 Quick Change Grip for Pulling 1/2” OD Wire with 1/2” to 9/16” 12.7 OD Wire/12.7-14.3
12793 Quick Change Grip for Pulling 3/4” OD Wire with 3/4” to 1” 19.1 OD Wire/19.1-24.4
