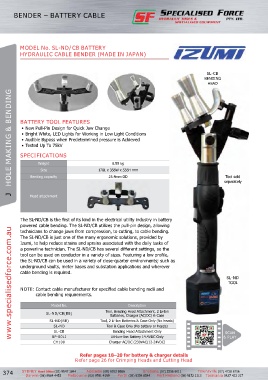

Page 386 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

BENDER – BATTERY CABLE

MODEL No. SL-ND/CB BATTERY
HYDRAULIC CABLE BENDER (MADE IN JAPAN)

SL-CB
BENDING
HEAD

J HOLE MAKING & BENDING

BATTERY TOOL FEATURES
• New Pull-Pin Design for Quick Jaw Change
• Bright White, LED Lights for Working in Low Light Conditions
• Audible Bypass when Predetermined pressure is Achieved
• Tested Up To 75kV

SPECIFICATIONS

Weight 6.55 kg
Size 178L x 356W x 556H mm
Bending capacity 25.4mm OD Tool sold
seperately

Head attachment

The SL-ND/CB is the first of its kind in the electrical utility industry in battery
powered cable bending. The SL-ND/CB utilizes the pull-pin design, allowing
www.specialisedforce.com.au
technicians to change jaws from compression, to cutting, to cable bending.
The SL-ND/CB is just one of the many ergonomic solutions, provided by
Izumi, to help reduce strains and sprains associated with the daily tasks of
a powerline technician. The SL-ND/CB has several different settings, so the
tool can be used on conductor in a variety of sizes. Featuring a low profile,
the SL-ND/CB can be used in a variety of close-quarter environments; such as
underground vaults, meter bases and substation applications and wherever
cable bending is required.
SL-ND
TOOL
NOTE: Contact cable manufacturer for specified cable bending radii and
cable bending requirements.

Model No. Description
Tool, Bending Head Attachment, 2 Li-Ion
SL-ND/CB(BB)
Batteries, Charger (AC/DC) & Case
SL-ND(BB) Tool, 2 Li-Ion Batteries & Case Only (No heads)
SL-ND Tool & Case Only (No battery or heads)
SL-CB Bending Head Attachment Only SCAN
BP-80LI Lithium-Ion Battery 14.4VDC Only & PLAY
CH100 Charger AC/DC (230VAC/12-24VDC)

Refer pages 18–20 for battery & charger details
Refer page 26 for Crimping Heads and Cutting Head
