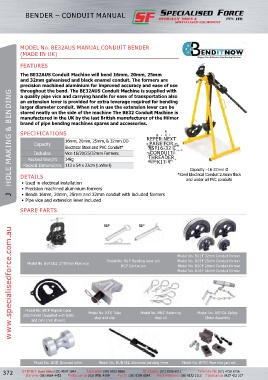

P. 384

BENDER – CONDUIT MANUAL







          MODEL No. BE32AUS MANUAL CONDUIT BENDER
          (MADE IN UK)

          FEATURES

          The BE32AUS Conduit Machine will bend 16mm, 20mm, 25mm
          and 32mm galvanised and black enamel conduit. The formers are
          precision machined aluminium for improved accuracy and ease of use
          throughout the bend. The BE32AUS Conduit Machine is supplied with
      J   HOLE MAKING & BENDING
          a quality pipe vice and carrying handle for ease of transportation also
          an extension lever is provided for extra leverage required for bending
          larger diameter conduit. When not in use the extension lever can be
          stored neatly on the side of the machine The BE32 Conduit Machine is
          manufactured in the UK by the last British manufacturer of the Hilmor
          brand of pipe bending machines spares and accessories.

          SPECIFICATIONS
                                16mm, 20mm, 25mm, & 32mm OD       REFER NEXT
                Capacity                                           PAGE FOR
                              Electrical Steel and PVC Conduit*     SF16-32
                Includes      Vice 16/20/25/32mm Formers.           CONDUIT
             Packed Weight    34kg                                 THREADER
                                                                       KIT
           Packed Dimensions 113 x 54 x 22cm (LxWxH)
                                                                                     Capacity –16-32mm Ø
          DETAILS                                                               *Steel Electrical Conduit 2.0mm thick
                                                                                    and under all PVC conduits
           • Used in electrical installation
           • Precision machined aluminium formers
           • Bends 16mm, 20mm, 25mm and 32mm conduit with included formers
           • Pipe vice and extension lever included

          SPARE PARTS


                                               BLP             BLP
      www.specialisedforce.com.au




                                                                                Model No. B32F 32mm Conduit former
                                                 Model No. BLP Bending lever pin    Model No. B25F 25mm Conduit former
             Model No. BVICE2 2”/50mm Pipe vice
                                                       BCP Centre pin           Model No. B20F 20mm Conduit former
                                                                                Model No. B16F 16mm Conduit former








            Model No. BDP Repeat bend
           attachment (Supplied with bolts   Model No. BTS Tube    Model No. BRC Retaining    Model No. BSPCA Safety
               and pins (not shown)        stop and clip              clips x5              Chain Assembly









                Model No. BGR Grooved roller  Model No. BUNIBL Universal bending lever  Model No. BPVJ Pipe vice jaw set
