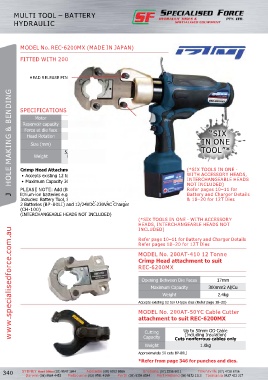

Page 352 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

MULTI TOOL – BATTERY
HYDRAULIC

MODEL No. REC-6200MX (MADE IN JAPAN)

FITTED WITH 200AT-410 12 TONNE CRIMP HEAD

HEAD RELEASE PIN

J HOLE MAKING & BENDING

SPECIFICATIONS
Motor 14.4 VDC EASY PULL PIN
Reservoir capacity 100 cc TO CHANGE
Force at die face 127 kN HEADS “SIX
Head Rotation 180°
Size (mm) 356 x 326 x 70 IN ONE
(LxHxW)
5.8kg with BP-80LI TOOL”*
Weight Battery (without
crimp head)
Crimp Head Attachment (*SIX TOOLS IN ONE -
• Accepts existing 12 ton U-type dies WITH ACCESSORY HEADS,
• Maximum Capacity 300 mm AL & CU INTERCHANGEABLE HEADS
NOT INCLUDED)
PLEASE NOTE: Add (BB) to the model number sufix for Refer pages 10–11 for
lithium-ion batteries e.g. REC 6200MX (BB) Battery and Charger Details
Includes: Battery Tool, Shoulder strap, Carrying case, & 18–20 for 12T Dies
2 Batteries (BP-80LI) and 12/24VDC-230VAC Charger
(CH-100)
(INTERCHANGEABLE HEADS NOT INCLUDED)
(*SIX TOOLS IN ONE - WITH ACCESSORY
HEADS, INTERCHANGEABLE HEADS NOT
INCLUDED)
www.specialisedforce.com.au
Refer page 10–11 for Battery and Charger Details
Refer pages 18–20 for 12T Dies
MODEL No. 200AT-410 12 Tonne
Crimp Head attachment to suit
REC-6200MX

Opening Between Die Faces 17mm
Maximum Capacity 300mm2 Al/Cu
Weight 2.4kg
Accepts existing 12 ton U-type dies (Refer page 18–20)
MODEL No. 200AT-50YC Cable Cutter
attachment to suit REC-6200MX

Cutting Up to 50mm OD Cable
(Including Insulation)
Capacity Cuts nonferrous cables only
Weight 1.0kg
Approximately 50 cuts BP-80LI
*Refer from page 346 for punches and dies.
