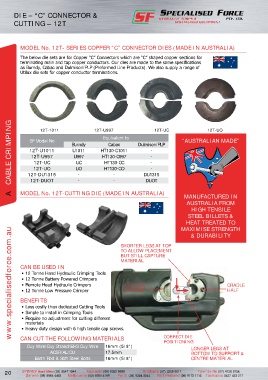

Page 30 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

DIE – “C” CONNECTOR &
CUTTING – 12T

MODEL No. 12T- SERIES COPPER “C” CONNECTOR DIES (MADE IN AUSTRALIA)

The below die sets are for Copper “C” Connectors which are “C” shaped copper sections for
terminating main and tap copper conductors. Our dies are made to the same specifications
as Burndy, Cabac and Dulmison/PLP (Preformed Line Products). We also supply a range of
Utilux die sets for copper conductor terminations.

A CABLE CRIMPING 12T-DU1315 Burndy 12T-U997 - Dulmison/PLP “AUSTRALIAN MADE”
12T-1011
12T-UC
12T-UO
Equivalent to
SF Model No
Cabac
12T-U1011
-
U1011
HT130-C1011
U997
12T-U997
HT130-C997
-
UC
12T-UC
-
HT130-CC
12T-UO
HT130-CO
-
UO
-
DU1315
DUOT
-
-
12T-DUOT
MODEL No. 12T-CUTTING DIE (MADE IN AUSTRALIA)
MANUFACTURED IN
AUSTRALIA FROM
HIGH TENSILE
STEEL BILLETS &
HEAT TREATED TO
MAXIMISE STRENGTH
www.specialisedforce.com.au
& DURABILITY
SHORTER LEGS AT TOP
TO ALLOW PLACEMENT
BUT STILL CAPTURE
MATERIAL
CAN BE USED IN
• 12 Tonne Hand Hydraulic Crimping Tools
• 12 Tonne Battery Powered Crimpers
• Remote Head Hydraulic Crimpers CUTTING CRADLE
• 12 Tonne Low Pressure Crimper DIE HALF HALF
BENEFITS
• Less costly than dedicated Cutting Tools
• Simple to install in Crimping Tools
• Require no adjustment for cutting different
materials
• Heavy duty design with 6 high tensile cap screws.

CAN CUT THE FOLLOWING MATERIALS CORRECT DIE
POSITIONING
Guy Wire/Guy Strand/EHS Guy Wire 16mm (5/8”) LONGER LEGS AT
ACSR/AL/CU 17.5mm BOTTOM TO SUPPORT &
Earth Rod & Soft Steel Bolts 16mm (5/8”) CENTRE MATERIAL
