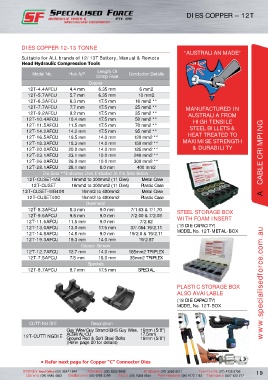

Page 29 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

DIES COPPER – 12T

DIES COPPER 12-13 TONNE
“AUSTRALIAN MADE”
Suitable for ALL brands of 12/13T Battery, Manual & Remote
Head Hydraulic Compression Tools
Length Of
Model No. Hex A/F Conductor Details
Crimp Face
Copper
12T-4.4AFCU 4.4 mm 6.35 mm 6 mm2
12T-5.7AFCU 5.7 mm 6.35 mm 10 mm2
12T-6.3AFCU 6.3 mm 17.5 mm 16 mm2 **
12T-7.7AFCU 7.7 mm 17.5 mm 25 mm2 ** MANUFACTURED IN
12T-9.2AFCU 9.2 mm 17.5 mm 35 mm2 ** AUSTRALIA FROM
12T-10.4AFCU 10.4 mm 17.5 mm 50 mm2 ** HIGH TENSILE
12T-11.5AFCU 11.5 mm 17.5 mm 70 mm2 ** STEEL BILLETS &
12T-14.2AFCU 14.2 mm 17.5 mm 95 mm2 ** HEAT TREATED TO
12T-16.5AFCU 16.5 mm 14.0 mm 120 mm2 **
12T-18.3AFCU 18.3 mm 14.0 mm 150 mm2 ** MAXIMISE STRENGTH
12T-20.0AFCU 20.0 mm 14.0 mm 185 mm2 ** & DURABILITY
12T-23.1AFCU 23.1 mm 10.0 mm 240 mm2 **
12T-26.0AFCU 26.0 mm 10.0 mm 300 mm2 ** A CABLE CRIMPING
12T-28.1AFCU 28.1 mm 8.0 mm 400 mm2
Die Sets **Indicates Dies Included In the Sets Below
12T-CUSET-MB 16mm2 to 300mm2 (11 Dies) Metal Case
12T-CUSET 16mm2 to 300mm2 (11 Dies) Plastic Case
12T-CUSET-MB400 16mm2 to 400mm2 Metal Case
12T-CUSET400 16mm2 to 400mm2 Plastic Case
Overhead
12T-8.3AFCU 8.3 mm 9.0 mm 7/1.63 & 7/1.70 STEEL STORAGE BOX
12T-9.6AFCU 9.6 mm 9.0 mm 7/2.00 & 7/2.03 WITH FOAM INSERT
12T-11.5AFCU 11.5 mm 9.0 mm 7/2.62
12T-13.0AFCU 13.0 mm 17.5 mm 37/.064 19/2.11 (15 DIE CAPACITY)
12T-14.8AFCU 14.8 mm 9.0 mm 19/2.0 & 19/2.11 MODEL No. 12T-METAL-BOX
12T-19.3AFCU 19.3 mm 14.0 mm 19/2.57
Copper Screen
12T-12.7AFCU 12.7 mm 14.0 mm 185mm2 TRIPLEX
12T-7.5AFCU 7.5 mm 16.0 mm 35mm2 TRIPLEX
Specials
12T-8.7AFCU 8.7 mm 17.5 mm SPECIAL

PLASTIC STORAGE BOX www.specialisedforce.com.au
ALSO AVAILABLE
(18 DIE CAPACITY)
MODEL No. 12T-BOX

CUTTING DIE Description
Guy Wire/Guy Strand/EHS Guy Wire, 16mm (5/8”)
12T-CUTTINGDIE ACSR/AL/CU 17.5mm DIES
Ground Rod & Soft Steel Bolts
16mm (5/8”)
(Refer page 20 for details) 0.5kg
APPROX

• Refer next page for Copper “C” Connector Dies
