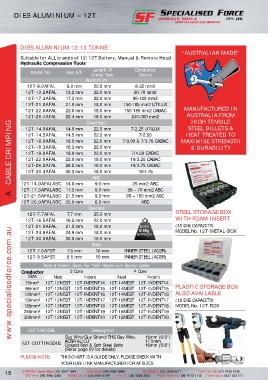

Page 28 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

DIES ALUMINIUM – 12T

DIES ALUMINIUM 12-13 TONNE
“AUSTRALIAN MADE”
Suitable for ALL brands of 12/13T Battery, Manual & Remote Head
Hydraulic Compression Tools
Length Of
Model No. Hex A/F Crimp Face Conductor
Details
Aluminium
12T-9.0AFAL 9.0 mm 22.0 mm 6-35 mm2
12T-13.2AFAL 13.2 mm 22.0 mm 50-70 mm2
12T-17.3AFAL 17.3 mm 22.0 mm 95-120 mm2
12T-21.0AFAL 21.0 mm 18.0 mm 150-185 mm2 UTILUX
12T-22.0AFAL 22.0 mm 18.0 mm 150-185 mm2 CABAC MANUFACTURED IN
AUSTRALIA FROM
12T-28.4AFAL 28.4 mm Overhead 7/2.25 UTILUX HEAT TREATED TO
240-300 mm2
18.0 mm
HIGH TENSILE
A CABLE CRIMPING 12T-18.0AFAL 18.0 mm ABC 7/3.00 & 7/3.75 CABAC MAXIMISE STRENGTH
STEEL BILLETS &
12T-14.0AFAL
22.0 mm
14.0 mm
12T-14.5AFAL
14.5 mm
22.0 mm
7/2.50
22.0 mm
18.3 mm
12T-18.3AFAL
& DURABILITY
22.0 mm
12T-19.0AFAL
7/4.50 CABAC
22.0 mm
19.0 mm
18.0 mm
12T-22.0AFAL
19/3.25 CABAC
22.0 mm
12T-26.2AFAL
19/3.75 CABAC
26.2 mm
18.0 mm
30.3 mm
18.0 mm
12T-30.3AFAL
19/4.75
12T-14.0AFALABC 14.0 mm
25 mm2 ABC
35 – 70 mm2 ABC
9.0 mm
12T-17.3AFALABC 17.3 mm
9.0 mm
12T-21.5AFALABC 21.5 mm
ABC
12T-25.0AFALABC 25.0 mm 9.0 mm 95 – 150 mm2 ABC
8.0 mm
Specials
12T-7.7AFAL 7.7 mm 25.0 mm STEEL STORAGE BOX
12T-16.5AFAL 16.5 mm 22.0 mm WITH FOAM INSERT
12T-21.5AFAL 21.5 mm 18.0 mm DIES (15 DIE CAPACITY)
www.specialisedforce.com.au
0.5kg
12T-24.9AFAL 24.9 mm 18.0 mm APPROX MODEL No. 12T-METAL-BOX

12T-30.0AFAL 30.0 mm 18.0 mm
Steel
12T-7.5AFST 7.5 mm 10 mm INNER STEEL (ACSR)
12T-9.5AFST 9.5 mm 10 mm INNER STEEL (ACSR)
Nest & Indent Sizes For “UG” Aluminium Sector Cable
Conductor 3 Core 4 Core
Size Nest Indent Nest Indent
70mm² 12T-12NEST 12T-INDENT14 12T-14NEST 12T-INDENT14
95mm² 12T-12NEST 12T-INDENT15 12T-14NEST 12T-INDENT15 PLASTIC STORAGE BOX
120mm² 12T-12NEST 12T-INDENT16 12T-14NEST 12T-INDENT16 ALSO AVAILABLE
150mm² 12T-12NEST 12T-INDENT17 12T-15NEST 12T-INDENT17 (18 DIE CAPACITY)
185mm² 12T-12NEST 12T-INDENT18 12T-15NEST 12T-INDENT18 MODEL No. 12T-BOX
240mm² 12T-12NEST 12T-INDENT19 12T-15NEST 12T-INDENT19
300mm² 12T-12NEST 12T-INDENT20 12T-15NEST 12T-INDENT20
CUTTING DIE Description
Guy Wire/Guy Strand/EHS Guy Wire, 16mm (5/8”)
12T-CUTTINGDIE ACSR/AL/CU 17.5mm
16mm (5/8”)
Ground Rod & Soft Steel Bolts
(Refer page 20 for details)
PLEASE NOTE: THIS CHART IS A GUIDE ONLY, PLEASE CHECK WITH
YOUR LUG/LINK MANUFACTURER FOR AF SIZES
