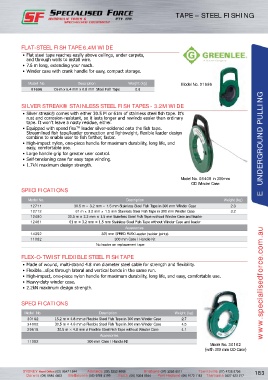

Page 193 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

TAPE – STEEL FISHING

FLAT-STEEL FISH TAPE 6.4M WIDE
• Flat steel tape reaches easily above ceilings, under carpets,
and through walls to install wire.
• 7.6 m long, extending your reach.
• Winder case with crank handle for easy, compact storage.

Model No. Description Weight (kg) Model No. 01696
01696 7.6 m x 6.4 mm x 0.8 mm Steel Fish Tape 0.6

SILVER STREAK® STAINLESS STEEL FISH TAPES - 3.2M WIDE

• Silver streak® comes with either 30.5 M or 61m of stainless steel fish tape. It’s
rust and corrosion-resistant, so it lasts longer and rewinds easier than ordinary
tape. It won’t leave a nasty residue, either.
• Equipped with speed flex™ leader silver-soldered onto the fish tape.
Streamlined fish tape/leader connection and lightweight, flexible leader design
combine to enable user to fish farther, faster.
• High-impact nylon, one-piece handle for maximum durability, long life, and E UNDERGROUND PULLING
easy, comfortable use.
• Large handle grip for greater user control.
• Self-tensioning case for easy tape winding.
• 1.7kN maximum design strength.

Model No. 06408 in 300mm
OD Winder Case
SPECIFICATIONS

Model No. Description Weight (kg)
12711 30.5 m × 3.2 mm × 1.5 mm Stainless Steel Fish Tape in 300 mm Winder Case 2.3
12712 61 m × 3.2 mm × 1.5 mm Stainless Steel Fish Tape in 300 mm Winder Case 3.2
12480 30.5 m × 3.2 mm × 1.5 mm Stainless Steel Fish Tape without Winder Case and leader
12481 61 m × 3.2 mm × 1.5 mm Stainless Steel Fish Tape without Winder Case and leader
Accessories
14392 305 mm SPEED FLEX Leader (solder joints)
11082 300 mm Case / Handle Kit
No leader on replacement tape

FLEX-O-TWIST FLEXIBLE STEEL FISH TAPE
• Made of wound, multi-strand 4.8 mm diameter steel cable for strength and flexibility.
• Flexible…slips through lateral and vertical bends in the same run.
• High-impact, one-piece nylon handle for maximum durability, long life, and easy, comfortable use.
• Heavy-duty winder case. www.specialisedforce.com.au
• 2.2kN maximum design strength.

SPECIFICATIONS

Model No. Description Weight (kg)
30162 15.2 m × 4.8 mm ø Flexible Steel Fish Tape in 300 mm Winder Case 2.7
34002 30.5 m × 4.8 mm ø Flexible Steel Fish Tape in 300 mm Winder Case 4.5
29518 30.5 m × 4.8 mm ø Flexible Steel Fish Tape without Winder Case 4.1
Accessories
11082 300 mm Case / Handle Kit
Model No. 30162
(with 300 mm OD Case)
