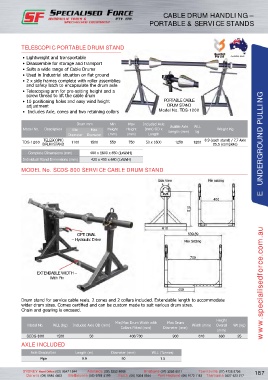

Page 197 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

CABLE DRUM HANDLING –
PORTABLE & SERVICE STANDS

TELESCOPIC PORTABLE DRUM STAND

• Lightweight and transportable Australian Made
• Disassemble for storage and transport
• Suits a wide range of Cable Drums
• Used in Industrial situation on flat ground
• 2 x side frames complete with roller assemblies
and safety latch to encapsulate the drum axle
• Telescoping arm for pre-setting height and a
screw thread to lift the cable drum
• 10 positioning holes and easy wind height PORTABLE CABLE
adjustment DRUM STAND
• Includes Axle, cones and two retaining collars Model No. TDS-1200

Drum mm Min Max Included Axle
Usable Axle
Model No. Description Min Max Height Height (mm) OD x Length (mm) WLL Weight Kg
kg
Diameter Diameter (mm) (mm) Length
TELESCOPIC
TDS-1200 DRUM STAND 1100 1500 550 750 50 x 1600 1250 1200 8.9 (each stand) / 7.7 Axle E UNDERGROUND PULLING
25.5 (complete)
Complete Dimensions (mm) 400 x 1600 x 850 (LxWxH)
Individual Stand Dimensions (mm) 420 x 400 x 640 (LxWxH)
MODEL No. SCDS-800 SERVICE CABLE DRUM STAND

400

510

610
OPTIONAL 839,89
– Hydraulic Drive

700

EXTENDABLE WIDTH –
With Pin www.specialisedforce.com.au

400
Drum stand for service cable reels. 2 cones and 2 collars included. Extendable length to accommodate
wider drum sizes. Comes certified and can be custom made to suit various drum sizes.
Chain and gearing is encased.

Height
Min/Max Drum Width with Max Drum
Model No. WLL (kg) Included Axle OD (mm) Width (mm) Overall Wt (kg)
Collars Fitted (mm) Diameter (mm)
(mm)
SCDS-800 1500 50 400/700 900 610 630 25
AXLE INCLUDED

Axle Description Length (m) Diameter (mm) WLL (Tonnes)
Pipe 0.9 50 1.5
