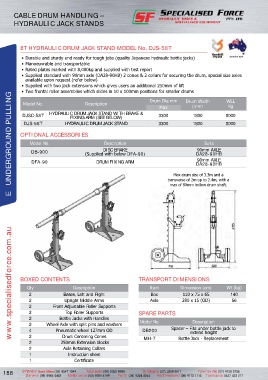

Page 198 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

CABLE DRUM HANDLING –
HYDRAULIC JACK STANDS

8T HYDRAULIC DRUM JACK STAND MODEL No. DJS-58T

• Durable and sturdy and ready for tough jobs (quality Japanese hydraulic bottle jacks) Australian Made
• Manoeuvrable and transportable
• Rated plates marked with 8,000kg and supplied with test report
• Supplied standard with 90mm axle (DA28-90HB) 2 cones & 2 collars for securing the drum, special size axles
available upon request (refer below)
• Supplied with two jack extensions which gives users an additional 250mm of lift
• Two frontal roller assemblies which slides in 10 x 100mm positions for smaller drums
E UNDERGROUND PULLING
Drum Dia mm Drum Width WLL
Model No. Description
Max (mm) Kg
DJSC-58T HYDRAULIC DRUM JACK STAND WITH BRAKE & 3300 1800 8000
FIXING ARM (SEE BELOW)
DJS-58T HYDRAULIC DRUM JACK STAND 3300 1800 8000

OPTIONAL ACCESSORIES

Model No. Description Suits
DISC BRAKE
90mm AXLE
DB-900 (Supplied with below DFA-90) DA28-90HB
90mm AXLE
DFA-90 DRUM FIXING ARM DA28-90HB

Max drum size of 3.3m and a
transverse of 2m up to 2.4m, with a
max of 90mm hollow drum shaft.

www.specialisedforce.com.au

BOXED CONTENTS TRANSPORT DIMENSIONS

Qty Description Item Dimension (cm) Wt (kg)
2 Bases, Left and Right Box 110 x 75 x 65 140
2 Upright Middle Arms Axle 280 x 15 (OD) 56
2 Front Adjustable Roller Supports
2 Top Roller Supports SPARE PARTS
2 Bottle Jacks with Handles
2 Wheel Axle with split pins and washers Model No. Description
4 Pneumatic wheel 127mm OD DB200 Spacer – Fits under bottle jack to
extend height
2 Drum Centering Cones MH-7 Bottle Jack - Replacement
2 250mm Extension blocks
2 Axle Retaining Collars
1 Instruction sheet
1 Certificate
