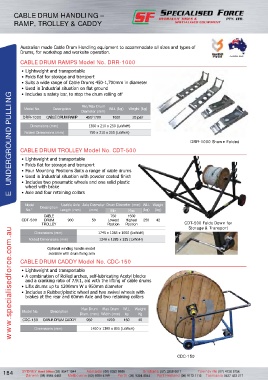

Page 194 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

CABLE DRUM HANDLING –
RAMP, TROLLEY & CADDY

Australian made Cable Drum Handling equipment to accommodate all sizes and types of
Drums, for workshop and worksite operation.
Australian Made
CABLE DRUM RAMPS Model No. DRR-1000

• Lightweight and transportable
• Folds flat for storage and transport
• Suits a wide range of Cable Drums 450-1,700mm in diameter
• Used in Industrial situation on flat ground
• Includes a safety bar, to stop the drum rolling off
E UNDERGROUND PULLING

Min/Max Drum
Model No. Description WLL (kg) Weight (kg)
Diameter (mm)
DRR-1000 CABLE DRUM RAMP 450/1700 1000 28 pair
Dimensions (mm) 1350 x 210 x 250 (LxWxH)
Folded Dimensions (mm) 750 x 210 x 250 (LxWxH)
DRR-1000 Shown Folded
CABLE DRUM TROLLEY Model No. CDT-500

• Lightweight and transportable
• Folds flat for storage and transport
• Four Mounting Positions Suits a range of cable drums
• Used in Industrial situation with powder coated finish
• Includes two pneumatic wheels and one solid plastic
wheel with brake
• Axle and four retaining collars

Model Usable Axle Axle Diameter Drum Diameter (mm) WLL Weight
No.* Description Length (mm) (mm) Min Max (kg) (kg)
CABLE 750 1500
CDT-500 DRUM 900 50 Lowest Highest 250 42
TROLLEY Position Position CDT-500 Folds Down for
Storage & Transport
www.specialisedforce.com.au
Dimensions (mm) 1745 x 1285 x 1000 (LxWxH)
Folded Dimensions (mm) 1340 x 1285 x 335 (LxWxH)
Optional winding handle model
available with drum fixing arm
CABLE DRUM CADDY Model No. CDC-150

• Lightweight and transportable
• A combination of Rolled arches, self-lubricating Acetyl blocks
and a cranking ratio of 7.9:1, aid with the lifting of cable drums
• Lifts drums up to 1200mm W x 950mm diameter
• Includes a Rubber/plastic wheel and two swivel wheels with
brakes at the rear and 60mm Axle and two retaining collars

Max Drum Max Drum WLL Weight
Model No. Description
Diam. (mm) Width (mm) kg Kg
CDC-150 CABLE DRUM CADDY 950 1200 150 40
Dimensions (mm) 1410 x 1300 x 855 (LxWxH)

CDC-150
