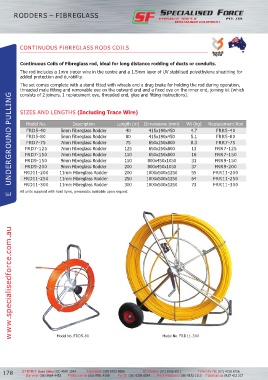

RODDERS – FIBREGLASS

CONTINUOUS FIBREGLASS RODS COILS

Continuous Coils of Fibreglass rod, ideal for long distance rodding of ducts or conduits.
The rod includes a 1mm tracer wire in the centre and a 1.5mm layer of UV stabilised polyethylene sheathing for
added protection and durability.

The set comes complete with a stand fitted with wheels and a drag brake for holding the rod during operation,
threaded male fitting and removable eye on the outward end and a fixed eye on the inner end, joining kit (which
consists of 2 joiners, 1 replacement eye, threaded end, glue and fitting instructions).
E UNDERGROUND PULLING

SIZES AND LENGTHS (Including Trace Wire)

Model No. Description Length (m) Dimensions (mm) Wt (kg) Replacement Rod
FRD5-40 5mm Fibreglass Rodder 40 415x190x450 4.7 FRR5-40
FRD5-80 5mm Fibreglass Rodder 80 415x190x450 5.1 FRR5-80
FRD7-75 7mm Fibreglass Rodder 75 650x250x800 8.3 FRR7-75
FRD7-125 7mm Fibreglass Rodder 125 650x250x800 13 FRR7-125
FRD7-150 7mm Fibreglass Rodder 150 650x250x800 16 FRR7-150
FRD9-150 9mm Fibreglass Rodder 150 800x450x1050 31 FRR9-150
FRD9-200 9mm Fibreglass Rodder 200 800x450x1050 37 FRR9-200
FRD11-200 11mm Fibreglass Rodder 200 1000x500x1250 55 FRR11-200
FRD11-250 11mm Fibreglass Rodder 250 1000x500x1250 64 FRR11-250
FRD11-300 11mm Fibreglass Rodder 300 1000x500x1250 73 FRR11-300
All units supplied with hard tyres, pneumatic available upon request

www.specialisedforce.com.au

Model No. FRD5-80 Model No. FRD11-300
