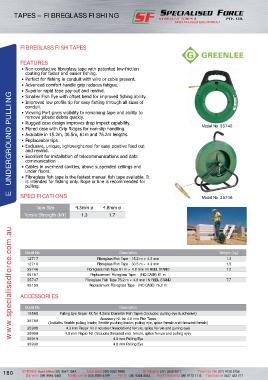

Page 190 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

TAPES – FIBREGLASS FISHING

FIBREGLASS FISH TAPES

FEATURES
• Non-conductive fibreglass tape with patented low-friction
coating for faster and easier fishing.
• Perfect for fishing in conduit with wire or cable present.
• Advanced comfort handle grip reduces fatigue.
• Superior rapid tape pay-out and rewind.
E UNDERGROUND PULLING
• Smaller Fish Eye with offset bend for improved fishing ability.
• Improved low profile tip for easy fishing through all sizes of
conduit.
• Viewing Port gives visibility to remaining tape and ability to
remove jobsite debris quickly.
• Rugged case design improves drop impact capability. Model No. 35742
• Flared case with Grip Ridges for non-slip handling.
• Available in 15.2m, 30.5m, 61m and 76.2m lengths.
• Replaceable tips.
• Exclusive, unique, lightweight reel for easy positive feed out
and rewind.
• Excellent for installation of telecommunications and data
communication
• Cables in overhead cavities, above suspended ceilings and
under floors.
• Fibreglass fish tape is the fastest manual fish tape available. It
is intended for fishing only. Rope or line is recommended for
pulling.
SPECIFICATIONS Model No. 35746

Tape Size 4.3mm ø 4.8mm ø
Tensile Strength (kN) 1.3 1.7

www.specialisedforce.com.au

Model No. Description Weight (kg)
12717 Fibreglass Fish Tape - 15.2 m × 4.3 mm 1.3
12718 Fibreglass Fish Tape - 30.5 m × 4.3 mm 1.5
35746 Fibreglass Fish Tape 61 m × 4.8 mm IN REEL STAND 7.2
05157 Replacement Fibreglass Tape - (NO CASE) 61 m
35747 Fibreglass Fish Tape 76.2 m × 4.8 mm IN REEL STAND 7.7
05158 Replacement Fibreglass Tape - (NO CASE) 76.2 m

ACCESSORIES

Model No. Description
10565 Pulling Eye Repair Kit for 4.3mm Diameter Fish Tapes (Includes: pulling eye & adhesive)
35750 Accessory Kit for 4.8 mm Fish Tapes
(Includes flexible pulling leader, flexible pushing leader, pulling eye, splice ferrule and threaded ferrule)
35908 4.3 mm Repair Kit (Includes threaded end ferrule, splice ferrule and pulling eye)
35909 4.8 mm Repair Kit (Includes threaded end ferrule, splice ferrule and pulling eye)
35919 4.3 mm Pulling Eye
35930 4.8 mm Pulling Eye
