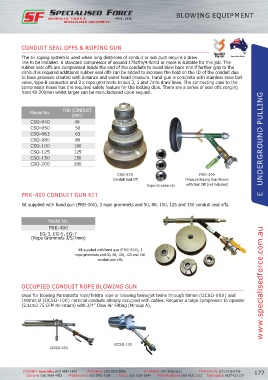

Page 187 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

BLOWING EQUIPMENT

CONDUIT SEAL OffS & ROPING GUN

The air roping system is used when long distances of conduit or sub duct require a draw Australian Made
line to be installed. A standard compressor of around 175cfm/4.9cm3 or more is suitable for this job. The
rubber seal offs are compressed inside the end of the conduits to avoid blow back and if further grip to the
conduit is required additional rubber seal offs can be added to increase the hold on the ID of the conduit due
to back pressure created with distance and water head pressure. Hand gun is complete with stainless steel ball
valve, type-B connector and 3 x rope grommets to suit 3, 5 and 7mm draw lines. The connecting claw to the
compressor hoses has the required safety feature for the locking clips. There are a series of seal offs ranging
from 40-200mm whilst larger can be manufactured upon request.

FOR CONDUIT
Model No.
(mm)
CSO-040 40
CSO-050 50
CSO-063 63
CSO-080 80
CSO-100 100 E UNDERGROUND PULLING
CSO-125 125
CSO-150 150
CSO-200 200

CSO-XXX PRG-300
Conduit Seal Off Pressure Roping Gun Shown
Rope Grommets with Seal Off (not included)
PRK-400 CONDUIT GUN KIT

Kit supplied with hand gun (PRG-300), 3 rope grommets and 50, 80, 100, 125 and 150 conduit seal offs.

Model No.
PRK-400
EG-3, EG-5, EG-7
(Rope Grommets 3/5/7mm)

Kit supplied with hand gun (PRG-300), 3
rope grommets and 50, 80, 100, 125 and 150
conduit seal offs.

OCCUPIED CONDUIT ROPE BLOWING GUN www.specialisedforce.com.au

Used for blowing Parramatta rope/Telstra rope or blowing twine/jet twine through 50mm (OCSO-050) and
100mm Ø (OCSO-100) nominal conduits already occupied with cables. Requires a large compressor to operate
(2.1cm3 75 CFM minimum) with 3/4” Claw Air Fitting (Minsup A).

OCSO-100
OCSO-050
