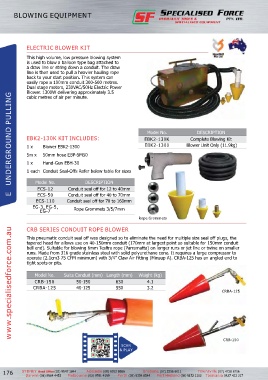

Page 186 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

BLOWING EQUIPMENT

ELECTRIC BLOWER KIT

This high volume, low pressure blowing system
is used to blow a balloon type bag attached to
a draw line or string down a conduit. The draw
line is then used to pull a heavier hauling rope
back to your start position. This system can
easily rope a 100mm conduit 300-500 metres.
Dual stage motors, 230VAC/50Hz Electric Power
Blower. 1300W delivering approximately 3.5
E UNDERGROUND PULLING
cubic metres of air per minute.

Model No. DESCRIPTION
EBK2-130K KIT INCLUDES: EBK2-130K Complete Blowing Kit

1 x Blower EBK2-1300 EBK2-1300 Blower Unit Only (11.9kg)
5m x 50mm hose EBP-5M50
1 x Hand-Gun EBH-30
1 each Conduit Seal-Offs Refer below table for sizes

Model No. DESCRIPTION
ECS-12 Conduit seal off for 12 to 40mm
ECS-50 Conduit seal off for 40 to 70mm
ECS-110 Conduit seal off for 70 to 160mm
EG-3, EG-5,
EG-7 Rope Grommets 3/5/7mm
Rope Grommets
CRB SERIES CONDUIT ROPE BLOWER
www.specialisedforce.com.au
This pneumatic conduit seal off was designed so to eliminate the need for multiple size seal off plugs, the
tapered head for allows use on 40-150mm conduit (170mm at largest point so suitable for 150mm conduit
bell end). Suitable for blowing 6mm Tesltra rope (Parramatta) on longer runs or jet line or twine on smaller
runs. Made from 316 grade stainless steel with solid polyurethane cone. It requires a large compressor to
operate (2.1cm3 75 CFM minimum) with 3/4” Claw Air Fitting (Minsup A). CRBA-125 has an angled end to
tight spots or pits.

Model No. Suits Conduit (mm) Length (mm) Weight (kg)
CRB-150 50-150 630 4.1
CRBA-125 40-125 550 3.2
CRBA-125

CRB-150
