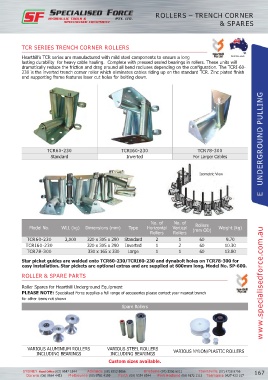

Page 177 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

ROLLERS – TRENCH CORNER
& SPARES

TCR SERIES TRENCH CORNER ROLLERS

Hearthill’s TCR series are manufactured with mild steel components to ensure a long Australian Made
lasting durability for heavy cable hauling. Complete with pressed sealed bearings in rollers. These units will
dramatically reduce the friction and drag around all bend radiuses depending on the configuration. The TCRI-60-
230 is the inverted trench corner roller which eliminates cables riding up on the standard TCR. Zinc plated finish
and supporting frame features laser cut holes for bolting down.

E UNDERGROUND PULLING
TCR60-230 TCRI60-230 TCR78-300
Standard Inverted For Larger Cables

Isometric View

No. of No. of
Model No. WLL (kg) Dimensions (mm) Type Horizontal Vertical Rollers Weight (kg)
Rollers Rollers (mm OD)
TCR60-230 2,000 320 x 305 x 290 Standard 2 1 60 9.70
TCRI60-230 320 x 305 x 290 Inverted 1 2 60 10.30
TCR78-300 330 x 165 x 330 Large 1 1 60 13.80
Star picket guides are welded onto TCR60-230/TCRI60-230 and dynabolt holes on TCR78-300 for
easy installation. Star pickets are optional extras and are supplied at 600mm long, Model No. SP-600.
ROLLER & SPARE PARTS

Roller Spares for Hearthill Underground Equipment www.specialisedforce.com.au
PLEASE NOTE: Specialised Force supplies a full range of accessories please contact your nearest branch
for other items not shown
Spare Rollers

VARIOUS ALUMINIUM ROLLERS VARIOUS STEEL ROLLERS
INCLUDING BEARINGS INCLUDING BEARINGS VARIOUS NYLON/PLASTIC ROLLERS
Custom sizes available.
