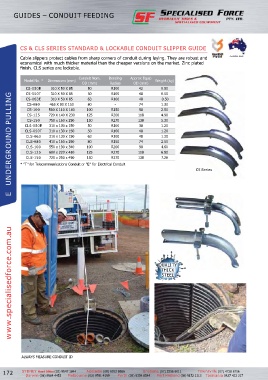

Page 182 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

GUIDES – CONDUIT FEEDING

CS & CLS SERIES STANDARD & LOCKABLE CONDUIT SLIPPER GUIDE

Cable slippers protect cables from sharp corners of conduit during laying. They are robust and Australian Made
economical with much thicker material than the cheaper versions on the market. Zinc plated
finish. CLS series are lockable.

Conduit Nom. Bending Approx Equip
Model No. * Dimensions (mm) Weight (kg)
OD (mm) Radius OD (mm)
CS-050E 310 X 50 X 85 50 R100 42 0.50
CS-050T 310 X 50 X 85 50 R100 48 0.50
E UNDERGROUND PULLING
CS-063E 310 X 50 X 85 63 R100 48 0.50
CS-080 465 X 90 X 150 80 - 74 1.30
CS-100 560 X 110 X 180 100 R150 98 2.50
CS-125 720 X 140 X 230 125 R200 118 4.90
CS-150 750 x 160 x 250 150 R270 138 5.30
CLS-050E 310 x 130 x 150 50 R100 38 1.20
CLS-050T 310 x 130 x 150 50 R100 48 1.20
CLS-063 310 x 130 x 150 63 R100 48 1.20
CLS-080 410 x 160 x 250 80 R150 74 2.50
CLS-100 550 x 190 x 340 100 R200 98 4.60
CLS-125 680 x 220 x 410 125 R270 118 6.80
CLS-150 720 x 250 x 450 150 R270 138 7.20
* “T” for Telecommunications Conduit or “E” for Electrical Conduit
CS Series

www.specialisedforce.com.au

QUALITY CLS Series
THICK
STEEL

ALWAYS MEASURE CONDUIT ID
