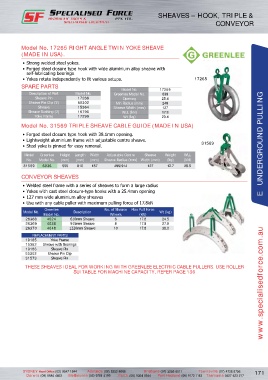

Page 181 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

SHEAVES – HOOK, TRIPLE &
CONVEYOR

Model No. 17265 RIGHT ANGLE TWIN YOKE SHEAVE
(MADE IN USA).

• Strong welded steel yokes.
• Forged steel closure type hook with wide aluminium alloy sheave with
self-lubricating bearings.
• Yokes rotate independently to fit various setups. 17265
SPARE PARTS
Model No. 17265
Description of Part Model No. Greenlee Model No. 639
Sheave Pin 17266 Opening 25.4
Sheave Pin Clip (2) 50302 Min Radius (mm) 249
Sheave 15364 Sheave Width (mm) 127
Sheave Bushing (2) 16798 WLL (kN) 17.8
Yoke Frame 17299 Wt (kg) 20.4
Model No. 31569 TRIPLE SHEAVE CABLE GUIDE (MADE IN USA)
• Forged steel closure type hook with 38.1mm opening.
• Lightweight aluminium frame with adjustable centre sheave. 31569
• Steel yoke is pinned for easy removal. E UNDERGROUND PULLING
Model Greenlee Height Length Width Adjustable Centre Sheave Weight WLL
No. Model No. (mm) (mm) (mm) Sheave Radius (mm) Width (mm) (kg) (kN)
31569 6036 555 610 187 495/914 127 12.7 28.9

CONVEYOR SHEAVES
• Welded steel frame with a series of sheaves to form a large radius
• Yokes with cast steel closure-type hooks with a 25.4mm opening
• 127 mm wide aluminium alloy sheaves
• Use with any cable puller with maximum pulling force of 17.8kN
Greenlee No. of Sheave Max Pull Force
Model No. Description Wt (kg)
Model No. Wheels (kN)
26368 4024 610mm Sheave 6 17.8 24.5
26369 4036 915mm Sheave 8 17.8 27.0
26370 4048 1220mm Sheave 10 17.8 38.0
REPLACEMENT PARTS
19185 Yoke Frame
15362 Sheave with Bearings
19186 Sheave Pin
50302 Sheave Pin Clip
31573 Sheave Pin
THESE SHEAVES IDEAL FOR WORKING WITH GREENLEE ELECTRIC CABLE PULLERS. USE ROLLER
SUITABLE FOR MACHINE CAPACITY, REFER PAGE 136 www.specialisedforce.com.au
