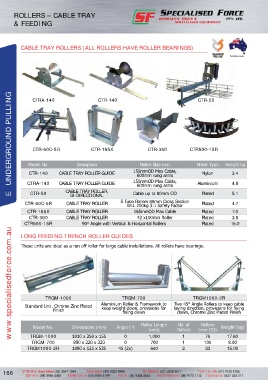

Page 176 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

ROLLERS – CABLE TRAY
& FEEDING

CABLE TRAY ROLLERS (ALL ROLLERS HAVE ROLLER BEARINGS)

Australian Made

E UNDERGROUND PULLING
CTRA-140 CTR-140 CTR-50

CTR-60C-5R CTR-165X CTR-360 CTR500-15R

Model No. Desciption Roller Size mm Roller Type Weight kg
CTR-140 CABLE TRAY ROLLER GUIDE 150mmOD Max Cable, Nylon 3.4
600mm rung arms
CTRA-140 CABLE TRAY ROLLER GUIDE 150mmOD Max Cable, Aluminium 4.8
600mm rung arms
CTR-50 CABLE TRAY ROLLER, Cable up to 60mm OD Plated 5.1
BI-DIRECTIONAL
CTR-60C-5R CABLE TRAY ROLLER 5 Tube Rollers 80mm Cross Section Plated 4.7
WLL 200kg 3:1 Safety Factor
CTR-165X CABLE TRAY ROLLER 165mmOD Max Cable Plated 7.0
CTR-360 CABLE TRAY ROLLER 42 x100mm Roller Plated 3.6
CTR500-15R 90° Angle with Vertical & Horizontal Rollers Plated 15.0
www.specialisedforce.com.au
LONG FEEDING TRENCH ROLLER GUIDES

These units are ideal as a run off roller for large cable installations. All rollers have bearings.

TRGM-1000 TRGM-700 TRGM1000-2R
Standard Unit, Chrome Zinc Plated Aluminium Roller & Framework to Two 45° Angle Rollers to keep cable
laying direction, provisions for fixing
keep weight down, provisions for
Finish fixing down down, Chrome Zinc Plated Finish

Model No. Dimensions (mm) Angle (°) Roller Length No. of Rollers Weight (kg)
(mm) Rollers (mm OD)
TRGM-1000 1010 x 250 x 155 0 1,000 1 76 17.60
TRGM-700 890 x 220 x 320 0 700 1 100 8.00
TRGM1000-2R 1080 x 125 x 535 45 (2x) 640 2 33 15.00
