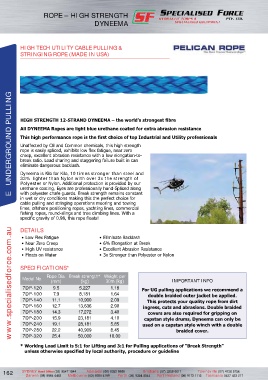

Page 172 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

ROPE – HIGH STRENGTH
DYNEEMA

HIGH TECH UTILITY CABLE PULLING &
STRINGING ROPE (MADE IN USA)

E UNDERGROUND PULLING

HIGH STRENGTH 12-STRAND DYNEEMA – the world’s strongest fibre

All DYNEEMA Ropes are light blue urethane coated for extra abrasion resistance
This high performance rope is the first choice of top Industrial and Utility professionals
Unaffected by Oil and Common chemicals, this high strength
rope is easily spliced, exhibits low flex fatigue, near zero
creep, excellent abrasion resistance with a low elongation-to-
break ratio. Load sharing and staggering failure built in can
eliminate dangerous backlash.
Dyneema is Kilo for Kilo, 10 times stronger than steel and
33% lighter than Nylon with over 3x the strength of
Polyester or Nylon. Additional protection is provided by our
urethane coating, Eyes are professionally hand-Spliced along
with polyester chafe guards. Break strength remains constant
in wet or dry conditions making this the perfect choice for
cable pulling and stringing operations mooring and towing
lines, offshore positioning ropes, yachting lines, commercial
fishing ropes, round-slings and tree climbing lines. With a
specific gravity of 0.98, this rope floats!

www.specialisedforce.com.au
DETAILS
• Low Flex Fatigue • Eliminate Backlash
• Near Zero Creep • 6% Elongation at Break
• High UV resistance • Excellent Abrasion Resistance
• Floats on Water • 3x Stronger than Polyester or Nylon

SPECIFICATIONS*

Rope Dia. Break strength* Weight per
Model No.
(mm) (kg) 30m (kg) IMPORTANT INFO
7DP-120 9.5 5,227 1.18 For UG pulling applications we recommend a
7DP-100 7.9 8,181 1.64 double braided outer jacket be applied.
7DP-140 11.1 10,900 2.09 This protects your quality rope from dirt
7DP-160 12.7 13,636 2.90 ingress, cuts and abrasions. Double braided
7DP-180 14.3 17,272 3.40 covers are also required for gripping on
7DP-200 15.9 23,181 4.10 capstan style drums, Dyneema can only be
7DP-240 19.1 28,181 5.85 used on a capstan style winch with a double
7DP-280 22.2 40,909 8.45 braided cover.
7DP-320 25.4 50,000 10.00

* Working Load Limit is 5:1 for Lifting and 3:1 for Pulling applications of “Break Strength”
unless otherwise specified by local authority, procedure or guideline
