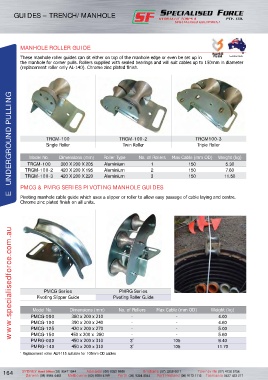

Page 174 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

GUIDES – TRENCH/MANHOLE

MANHOLE ROLLER GUIDE

These manhole roller guides can sit either on top of the manhole edge or even be set up in Australian Made
the manhole for corner pulls. Rollers supplied with sealed bearings and will suit cables up to 150mm in diameter
(replacement roller only AL-140). Chrome zinc plated finish.

E UNDERGROUND PULLING

TRGM-100 TRGM-100-2 TRGM100-3
Single Roller Twin Roller Triple Roller

Model No. Dimensions (mm) Roller Type No. of Rollers Max Cable (mm OD) Weight (kg)
TRGM-100 300 X 200 X 205 Aluminium 1 150 5.30
TRGM-100-2 420 X 200 X 195 Aluminium 2 150 7.60
TRGM-100-3 420 X 200 X 220 Aluminium 3 150 11.50

PMCG & PMRG SERIES PIVOTING MANHOLE GUIDES

Pivoting manhole cable guide which uses a slipper or roller to allow easy passage of cable laying and centre.
Chrome zinc plated finish on all units.

www.specialisedforce.com.au

PMCG Series PMRG Series
Pivoting Slipper Guide Pivoting Roller Guide

Model No. Dimensions (mm) No. of Rollers Max Cable (mm OD) Weight (kg)
PMCG-080 380 x 200 x 210 - - 4.00
PMCG-100 390 x 200 x 240 - - 4.60
PMCG-125 420 x 200 x 270 - - 5.00
PMCG-150 450 x 200 x 280 - - 5.60
PMRG-080 450 x 200 x 310 3 * 105 9.40
PMRG-140 450 x 200 x 310 3 * 105 11.70
* Replacement roller ALR-115 suitable for 105mm OD cables
