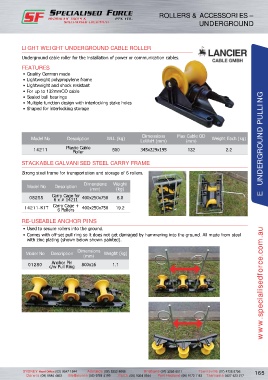

Page 175 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

ROLLERS & ACCESSORIES –
UNDERGROUND

LIGHT WEIGHT UNDERGROUND CABLE ROLLER

Underground cable roller for the installation of power or communication cables.

FEATURES
• Quality German made
• Lightweight polypropylene frame
• Lightweight and shock resistant
• For up to 132mmOD cable
• Sealed ball bearings
• Multiple function design with interlocking stake holes
• Shaped for interlocking storage

Model No Description WLL (kg) Dimensions Max Cable OD Weight Each (kg)
LxWxH (mm) (mm) E UNDERGROUND PULLING
14211 Plastic Cable 500 345x229x195 132 2.2
Roller
STACKABLE GALVANISED STEEL CARRY FRAME

Strong steel frame for transportation and storage of 6 rollers.

Model No Description Dimensions Weight
(kg)
(mm)
08255 Carry Cage for 400x250x750 6.0
6 x # 14211
14211-KIT Carry Cage + 400x250x750 19.2
6 Rollers
RE-USEABLE ANCHOR PINS
• Used to secure rollers into the ground.
• Comes with off-set pull ring so it does not get damaged by hammering into the ground. All made from steel
with zinc plating (shown below shown painted).

Dimensions
Model No Description (mm) Weight (kg)
Anchor Pin
01280 c/w Pull Ring 800x16 1.1 www.specialisedforce.com.au
