XXX |SERIESSPE |SERIES




         WWW.DURAPAC.COM.DURAPAC.COM                                            XXX PRODUCT DESCRIPTION TO GO HEREELECTRIC HYDRAULIC POWER UNITS
         WWW

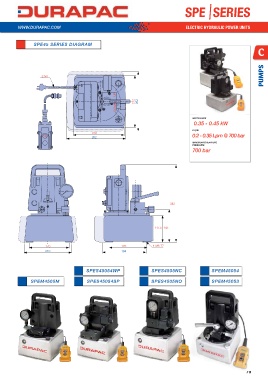

                SPE45 SERIES DIAGRAM
                                                                                                                    C



                                                                                                                      PUMPS

                    2.5m

                                 2.5m
                                                    UP
                                                             212  262
                                                     DOWN         UP      212  262
                                                                  DOWN                MOTOR SIZE
                                                                                       0.35 - 0.45 kW

                                                                                      FLOW
                                          212
                    ON                    262                                         0.2 - 0.35 Lpm @ 700 bar
                                                       212                            MAXIMUM OPERATING
                                 ON                    262                            PRESSURE
                                                                                      700 bar










                                                               342

                                                                             342


                                                        117.5  145
                                                                      117.5  145

        170                               170           4-M6-T7
 Pressure   kW @   Flow Rate (Lpm)  Usable Oil   *Optional Large   210  194
 Model  Electric Motor (50/60 Hz)  Rating   2,000   † Voltage  Amps  Fitted   Capacity   Tank Usable Oil   170  170  4-M6-T7
 with
 (bar)  rpm  70 bar  700 bar  (L)  Capacity (L)
                     210                               194
 SPE45   Single phase, commutator   700  0.45  230  4.5  2.5  0.35  Pressure   2  3
 Series  type, insulation class 120 (“E")  110  9  Gauge
                                       SPES45054WP                  SPES4505NC                 SPEM45054
 Valve Type   Used   Remote Pendant   Weight
 Model Number  Sol. = Solenoid    with   Pump Function  Function 2.4 mtr  (kg)
 Man. = Manual  Cylinder  SPEM4505M     SPES45054SP                 SPES4505NO                 SPEM45053
 SPEM4505M  Basic  S/A  P.T. manifold, without valve  MOTOR ON/OFF  16.3
 SPEM45053  3w/2p Man.  S/A  Advance, Hold, Retract via manual valve  MOTOR ON/OFF  18.1
 “Advance" when ON switch is pressed and the motor starts,
 SPES4505NC  3w/2p Sol.  S/A  Release ON switch to “Hold" and stop the motor, “Retract" when   Adv/Hold/Retract  19.2
 OFF switch is pressed
 “Advance" when ON switch is pressed and the motor starts, Auto
 SPES4505NO  2w/2p Sol.  S/A  MOTOR ON/OFF  20.5
 “Retract" when ON switch is released
 SPEM45054  4w/3p Man.  D/A  Advance, Hold, Retract via manual valve  MOTOR ON/OFF  18.1
 “Advance"/"A" port Hold/ “Retract" with stacking type pilot-
 SPES45054SP  4w/3p Sol.  D/A  Adv/Hold/Retract  20.5
 operated check valve fitted on “A" port line
 “Advance"/"A" and “B" port Hold/ “Retract" with stacking type
 SPES45054WP  4w/3p Sol.  D/A  pilot-operated check valve fitted on “A" and “B" port lines. Pressure  Adv/Hold/Retract  20.5
 holding on both “A" and “B" ports


                                                                                                              79
