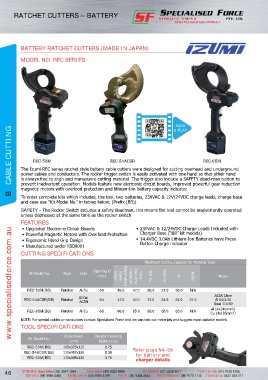

Page 56 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

RATCHET CUTTERS – BATTERY

BATTERY RATCHET CUTTERS (MADE IN JAPAN)

MODEL NO. REC SERIES

SCAN
B CABLE CUTTING The Izumi REC series ratchet style battery cable cutters were designed for cutting overhead and underground
& PLAY

REC-54ACSR
REC-65M
REC-50M
power cables and conductors. The rocker trigger switch is easily activated with one hand so that other hand
is always free to align and manoeuvre cutting material. The trigger also include a SAFETY dead-man button to
prevent inadvertent operation. Models feature new electronic circuit boards, improved powerful gear reduction
magnetic motors with overload protection and lithium-Ion battery capacity indicator.
To order complete kits which includes, the tool, two batteries, 230VAC & 12V/24VDC charge leads, charge base
and case use “Kit Model No.” in tables below. (Prefix (BB))
SAFETY - The Rocker Switch includes a safety deadman, this means the tool cannot be inadvertently operated
unless depressed at the same time as the rocker switch
FEATURES
• Upgraded Electronic Circuit Boards • 230VAC & 12/24VDC Charge Leads Included with
www.specialisedforce.com.au
• Powerful Magnetic Motors with Overload Protection Charger Base (“BB” kit models)
• Ergonomic Hand Grip Design • 14.4VDC 3.0Ah Lithium-Ion Batteries have Press
• Manufactured under ISO9001 Button Charge Indicator
CUTTING SPECIFICATIONS

Maximum Cutting Capacity for Material Type
Opening Ø
Kit Model No. Style Cuts
(mm) Cable* Power Polyethylene Insulation Core Vinyl Multi- Soft Cu Hard Cu Al ACSR Notes

REC-50M(BB) Ratchet Al/Cu 50 46.0 47.0 35.0 21.0 50.0 N/A
REC-54ACSR(BB) Ratchet Al/Cu/ 54 47.0 47.0 37.0 31.5 54.0 31.5 ACSR Olive
Al 54/3.50
ACSR
Steel 7/3.50
Al (4x240mm²)
REC-65M(BB) Ratchet Al/Cu 65 66.0 65.0 35.0 65.0 65.0 N/A
Cu (4x185mm²)
NOTE: For special cables or conductors contact Specialised Force and we can test cut materials and suggest most suitable models
TOOL SPECIFICATIONS
Dimensions Weight Including
Kit Model No.
(mm) Battery (kg)
REC-50M(BB) 105x375x115 2.75
REC-54ACSR(BB) 110x447x130 5.30 Refer page 54–55
for battery and
REC-65M(BB) 110x365x130 3.75
charger details
