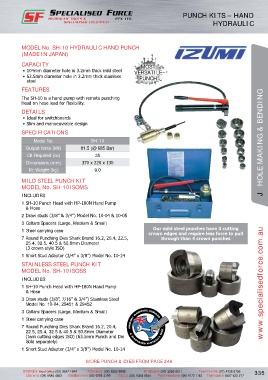

Page 347 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUNCH KITS – HAND
HYDRAULIC

MODEL No. SH-10 HYDRAULIC HAND PUNCH
(MADE IN JAPAN)

CAPACITY MOST
• 104mm diameter hole in 3.2mm thick mild steel VERSATILE
• 63.5mm diameter hole in 3.2mm thick stainless PUNCH
steel
FEATURES
The SH-10 is a hand pump with remote punching
head on hose lead for flexibility.
DETAILS
• Ideal for switchboards
• Slim and manoeuvrable design

SPECIFICATIONS
Model No. SH-10 J HOLE MAKING & BENDING
Output force (kN) 81.5 (@ 685 Bar)
Oil Required (cc) 35
Dimensions (mm) 370 x 220 x 130
Kit Weight (kg) 9.0

MILD STEEL PUNCH KIT
MODEL No. SH-10ISOMS
INCLUDES:
1 SH-10 Punch Head with HP-180N Hand Pump
& Hose
2 Draw studs (3/8” & 3/4”) Model No. 10-04 & 10-05
3 Collars/Spacers (Large, Medium & Small)
1 Steel carrying case Our mild steel punches have 3 cutting
crown edges and require less force to pull
7 Round Punching Dies Shark Brand 16.2, 20.4, 22.5, through than 4 crown punches
25.4, 32.5, 40.5 & 50.8mm Diameter
(3 crown style ISO)
1 Short Stud Adaptor (3/4” x 3/8”) Model No. 10-14
STAINLESS STEEL PUNCH KIT
MODEL No. SH-10ISOSS
INCLUDES:
1 SH-10 Punch Head with HP-180N Hand Pump www.specialisedforce.com.au
& Hose
3 Draw studs (3/8”, 7/16” & 3/4”) Stainless Steel
Model No. 10-04, 29451 & 29452

3 Collars/Spacers (Large, Medium & Small)
1 Steel carrying case
7 Round Punching Dies Shark Brand 16.2, 20.4, PROUDLY MARKETED, SERVICED
22.5, 25.4, 32.5 & 40.5 & 50.8mm Diameter & SUPPORTED AUSTRALIA WIDE
(twin cutting edges ISO) (63.5mm Punch and Die
Sold separately)
1 Short Stud Adaptor (3/4” x 3/8”) Model No. 10-14

MORE PUNCH & DIES FROM PAGE 346
