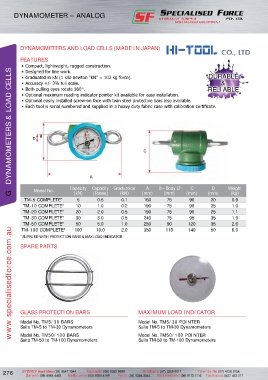

P. 286

DYNAMOMETER – ANALOG







          DYNAMOMETERS AND LOAD CELLS (MADE IN JAPAN)


          FEATURES
           •  Compact, lightweight, rugged construction.
      G   DYNAMOMETERS & LOAD CELLS
           •  Designed for line work.
           •  Graduated in kN (1 kilo newton “kN” = 102 kg force).                            DURABLE
           •  Accuracy +/- 3% full scale.                                                          &
           •  Both pulling eyes rotate 360°.                                                 RELIABLE
           •  Optional maximum reading indicator pointer kit available for easy installation.
           •  Optional easily installed screw-on face with twin steel protective bars also available.
           •  Each tool is serial numbered and supplied in a heavy duty fabric case with calibration certificate.







                D  B

                                                                 C





                                         A

                                                                                      C
                                                                                               D
                                                                  A
                Model No.       Capacity  Capacity  Graduation   (mm)  B - Body Ø   (mm)     (mm)     Weight
                                                                                                        (kg)
                                  (kN)
                                                                          (mm)
                                                      (kN)
                                          (Tonne)
            TM-5 COMPLETE*         5        0.5        0.1       160       75        90        20       0.9
           TM-10 COMPLETE*         10       1.0        0.2       190       75        90        25       1.0
           TM-20 COMPLETE*         20       2.0        0.5       190       75        90        25       1.1
           TM-30 COMPLETE*         30       3.0        0.5       240       75        95        35       1.9
           TM-50 COMPLETE*         50       5.0        1.0       250       90        120       35       2.6
      www.specialisedforce.com.au
           TM-100 COMPLETE*       100       10.0       2.0       350       110       140       50       6.0
          *SUPPLIED WITH PROTECTION BARS & MAX LOAD INDICATOR
          SPARE PARTS















          GLASS PROTECTION BARS                                MAXIMUM LOAD INDICATOR

          Model No. TM5/30 BARS                                Model No. TM5/30 POINTER
          Suits TM-5 to TM-30 Dynamometers                     Suits TM-5 to TM-30 Dynamometers
          Model No. TM50/100 BARS                              Model No. TM50/100 POINTER
          Suits TM-50 to TM-100 Dynamometers                   Suits TM-50 to TM-100 Dynamometers
