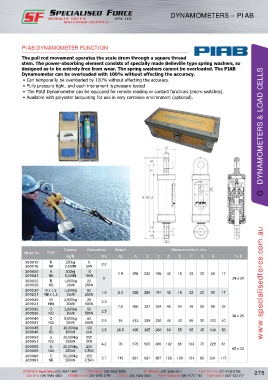

DYNAMOMETERS – PIAB

PIAB DYNAMOMETER FUNCTION

The pull rod movement operates the scale drum through a square thread
stem. The power-absorbing element consists of specially made Belleville type spring washers, so
designed as to be entirely free from wear. The spring washers cannot be overloaded. The PIAB
Dynamometer can be overloaded with 100% without affecting the accuracy.
• Can temporarily be overloaded by 100% without affecting the accuracy.
• Fully pressure tight, and each instrument is pressure tested.
• The PIAB Dynamometer can be equipped for remote reading or contact functions (micro switches).
• Available with polyester lacquering for use in very corrosive environment (optional). G DYNAMOMETERS & LOAD CELLS

Capacity Graduations Weight Measurements in mm
Model No. TYPE
kg/N 1 Mm Kg A B C D E F G H I J x K
300015 K 250kg 5
300016 NK 2,500N 50N 2.2
300020 A 500kg 10
300021 NA 5,000N 100N 2 1.9 266 230 165 42 18 23 20 50 17 24 x 20
300025 B 1,000kg 20
300026 NB 10kN 200N www.specialisedforce.com.au
300230 B x 1.5 1,500kg 50 1.6 2.3 292 256 191 42 18 23 20 50 17
300231 NB x 1.5 15kN 250N
300030 M 2,000kg 25
300031 NM 20kN 500N 2.3 7.8 395 327 234 45 34 48 25 86 33
300035 O 3,000kg 50
300036 NO 30kN 500N 2.5 26 x 20
300040 Q 5,000kg 50
300041 NQ 50kN 500N 2.5 15 413 329 230 45 42 55 30 122 40
300045 S 10,000kg 100 3.5 26.5 495 385 260 60 55 65 45 149 56
300046 SQ 100kN 1kN
300050 U 20,000kg 200
300051 NU 200kN 2kN
300055 G 25,000kg 200 4.2 78 675 505 300 102 85 103 70 228 81
300056 NG 250kN 2.5kN 65 x 23
300060 E 50,000kg 250
300061 NE 500kN 2.5kN 2.7 115 831 631 387 123 100 121 95 231 115
