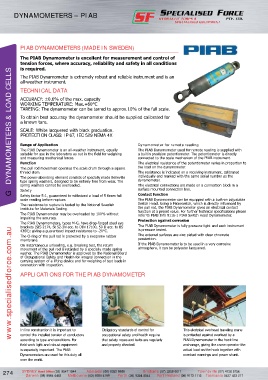

DYNAMOMETERS – PIAB

PIAB DYNAMOMETERS (MADE IN SWEDEN)

The PIAB Dynamometer is excellent for measurement and control of
tension forces, where accuracy, reliability and safety in all conditions
is required.
G DYNAMOMETERS & LOAD CELLS
The PIAB Dynamometer is extremely robust and reliable instrument and is an
all-weather instrument.
TECHNICAL DATA

ACCURACY: ±0.6% of the max. capacity
WORKING TEMPERATURE: Max.+60°C
TAREING: The dynamometer can be tarred to approx.10% of the full scale.

To obtain best accuracy the dynamometer should be supplied calibrated for
a known tare.
SCALE: White lacquered with black graduation.
PROTECTION CLASS: IP 67, IEC 529 NEMA 4X
Range of Application Dynamometer for remote reading
The PIAB Dynamometer is an all-weather instrument, equally The PIAB Dynamometer used for remote reading is supplied with
suitable for use in the laboratory as out in the field for weighing a builtin precision potentiometer. The potentiometer is directly
and measuring mechanical forces. connected to the scale mechanism of the PIAB instrument.
Function The electrical resistance of the potentiometer varies in proportion to
The pull rod movement operates the scale drum through a square the load on the dynamometer.
thread stem. The resistance is indicated on a receiving instrument, calibrated
The power-absorbing element consists of specially made Belleville individually and marked with the same serial number as the
type spring washers, designed to be entirely free from wear. The dynamometer.
spring washers cannot be overloaded. The electrical connections are made on a connection block in a
Safety surface mounted connection box.
Safety factor 5:1, guaranteed to withstand a load of 5 times full Contact function
scale reading before rupture. The PIAB Dynamometer can be equipped with a built-on adjustable
The resistance to rupture is tested by the National Swedish Switch Head. Using a Microswitch, which is directly influenced by
Institute for Materials Testing. the pull rod, the PIAB Dynamometer gives an electrical contact
function at a preset value. For further technical specifications please
The PIAB Dynamometer may be overloaded by 100% without refer to PIAB Info 9116-1 PIAB Switch Head Dynamometer.
impairing the accuracy. Protection against corrosion
The PIAB Dynamometers, types M-G, have drop-forged steel eye
brackets (SIS 2174, St 52-3N acc. to DIN 17100, 50 D acc. to BS The PIAB Dynamometer is fully pressure tight and each instrument
www.specialisedforce.com.au
4360); giving a guaranteed impact resistance to -20°C. is pressure tested.
The O-ring of the pull rod is protected by a neoprene rubber The external surfaces are zinc plated with clear chromate
membrane. passivation.
On instantaneous unloading, e.g. breaking test, the return If the PIAB Dynamometer is to be used in a very corrosive
movement of the pull rod is retarded by a specially made spring atmosphere, it can be polyester lacquered.
washer. The PIAB Dynamometer is approved by the National Board
of Occupational Safety and Health for integral connection in the
carrying system of a lifting device and for weighing of test loads in
connection with inspection.
APPLICATIONS FOR THE PIAB DYNAMOMETER

In line construction it is important to Obligatory standards of control for This electrical overhead traveling crane
control the installed tension of conductors occupational safety and health require is protected against overload by a
according to type and conditions. For that safety ropes and belts are regularly PIAB Dynamometer in the hook line
field work light and robust equipment and properly checked. anchorage, giving the crane operator the
is especially important. The PIAB actual load on the hook together with
Dynamometers are used for this duty all overload warnings and power shunt.
over the world.
