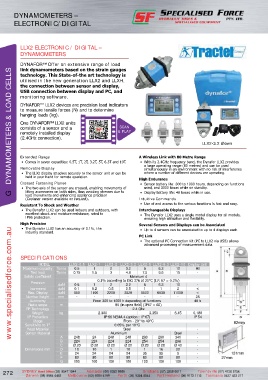

DYNAMOMETERS –
ELECTRONIC/DIGITAL

LLX2 ELECTRONIC / DIGITAL –
DYNAMOMETERS

DYNAFOR™ Offer an extensive range of load
link dynamometers based on the strain gauges
G DYNAMOMETERS & LOAD CELLS
technology. This State-of-the art technology is
utilised in the new generation LLX2 and LLXH,
the connection between sensor and display,
USB connection between display and PC, and
monitoring software.
DYNAFOR™ LLX2 devices are precision load indicators
to measure tensile forces (N) and to determine
hanging loads (kg).
One DYNAFOR™ LLX2 units
consists of a sensor and a SCAN
remotely installed display & PLAY
(2.4GHz connection).
LLX2-3.2 shown

Extended Range A Wireless Link with 80 Metre Range
• Comes in seven capacities: 0.5T, 1T, 2T, 3.2T, 5T, 6.3T and 10T. • With its 2.4GHz frequency band, the Dynafor LLX2 provides
Removable Display a large operating range (80 metres) and can be used
simultaneously in an environment with no risk of interference
• The LLX2 display attaches securely to the sensor unit or can be where a number of different devices are operating.
held in your hand for remote operation. High Endurance
Crossed Fastening Planes • Sensor battery life: 300 to 1000 hours, depending on functions
• The two axis of the sensor are crossed, enabling movements of used, and 3000 hours while on standby.
lifting accessories on both sides, thus avoiding stresses due to • Display battery life: 48 hours while in use.
load movements and enhancing appliance precision
(Coplanar version available on request). Intuitive Commands
Resistant To Shock and Weather • Use of and access to the various functions is fast and easy.
• The Dynafor LLX2 can be used indoors and outdoors, with Interchangeable Displays
excellent shock and moisture resistance, rated to • The Dynafor LLX2 uses a single model display for all models,
IP66 protection. ensuring high utilisation and flexibility.
High Precision Several Sensors and Displays can be Associated
• The Dynafor LLX2 has an accuracy of 0.1%, the • Up to 4 sensors can be associated to up to 4 displays each.
www.specialisedforce.com.au
industry standard.
PC Link
• The optional PC Connection Kit (PC to LLX2 via USB) allows
advanced processing of measurement data.
SPECIFICATIONS
MODEL LLX2-0.5 LLX2-1 LLX2-2 LLX2-3.2 LLX2-5 LLX2-6.3 LLX2-10 Display Unit
Maximum capacity Tonne 0.5 1 2 3.2 5 6.3 10 All
Test load Tonne 0.75 1.5 3 4.8 7.5 9.6 15 -
Safety coefficient Minimum 4
0.1% according to ISO 376 at 21°C (I.P. 67 = 0.2%)
Precision daN 0.5 1 2 3.2 5 6.3 10 -
Increment daN 0.1 0.2 0.5 0.5 1 1 2 <
Max. Display daN 550 1100 2200 3520 5500 6930 11000 <
Number height mm - - - - - - - 25
Autonomy From 300 to 1000 h depending of functions 48 h
Radio scope m 80 (in open field) (IP67 = 60)
RF Technology 2.4 Ghz
Weight kg 2.300 3.350 6.45 0.180
IP Protection IP 66 NEMA 4 (option : IP 67) IP 54
Usage From - 20° to 40°C 82mm
Sensitivity to T° 0.05% per 10°C
Head Material Steel -
Sensor Material Aluminium Steel -
A 248 24 248 248 290 290 341 -
B 224 224 224 224 254 254 296 -
C Ø 20 Ø 20 Ø 20 Ø 20 Ø 28 Ø 28 Ø 40 -
Dimensions mm D 10 10 1 10 1 16 20 -
E 24 24 24 24 35 35 5 - 131mm
F 80 80 80 80 80 80 80 - 27mm
G 100 100 100 100 100 100 100 -
