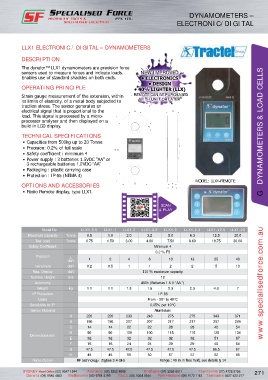

DYNAMOMETERS –
ELECTRONIC/DIGITAL

LLX1 ELECTRONIC / DIGITAL – DYNAMOMETERS

DESCRIPTION

The dynafor™ LLX1 dynamometers are precision force
sensors used to measure forces and indicate loads. NEW IMPROVED
Enables use of standard shackles on both ends. • ELECTRONICS
• DESIGN
OPERATING PRINCIPLE • 40% LIGHTER (LLX)

Strain gauge measurement of the extension, within - REMOTE CAN BE PURCHASED
its limits of elasticity, of a metal body subjected to WITH UNIT OR LATER
traction stress. The sensor generates an
electrical signal that is proportional to the
load. This signal is processed by a micro-
processor analyser and then displayed on a
build in LCD display.

TECHNICAL SPECIFICATIONS G DYNAMOMETERS & LOAD CELLS
• Capacities from 500kg up to 20 Tonne
• Precision: 0.2% of full scale
• Safety coefficient : minimum 4
• Power supply : 3 batteries 1.5VDC “AA” or
3 rechargeable batteries 1.2VDC “AA”
• Packaging : plastic carrying case
• Protection : IP 65 (NEMA 4)
MODEL: LLX1-REMOTE
OPTIONS AND ACCESSORIES
• Radio Remote display, type LLX1.

SCAN
& PLAY

Model No. LLX1-0.5 LLX1-1 LLX1-2 LLX1-3.2 LLX1-5 LLX1-6.3 LLX1-12.5 LLX1-20
Maximum Capacity Tonne 0.5 1.0 2.0 3.2 5.0 6.3 12.5 20.0
Test Load Tonne 0.75 1.50 3.00 4.80 7.50 9.60 18.75 30.00
Safety Coefficient Minimum 4
0.2 % FS
Precision ±
daN 1 2 4 6 10 13 25 40
Increment daN 0.2 0.5 1 1 2 2 5 10
Max. Display daN 110 % maximum capacity
Number Height mm 18
Autonomy 450h (Batteries 1.5 V “AA ”) www.specialisedforce.com.au
Weight kg 1.1 1.1 1.3 1.5 2.3 2.3 4.3 7
IP Protection I.P. 65
Usafe From - 20° to 40°C
Sensitivity to T° 0.05% per 10°C
Sensor Material Aluminium
A 220 220 233 243 275 275 343 371
B 196 196 207 207 217 217 257 269
C 14 14 22 22 28 28 42 54
D 90 90 100 100 115 115 125 134
Dimensions mm
E 32 32 32 32 32 32 51 67
F 16 16 24 24 29 29 48 64
G 47.5 47.5 47.5 47.5 47.5 47.5 66.5 67
H 45 45 50 50 57 57 62 66
Radio Option RF technology: Zigbee 2.4 GHz Range : 40 m in free field, see details § 14
