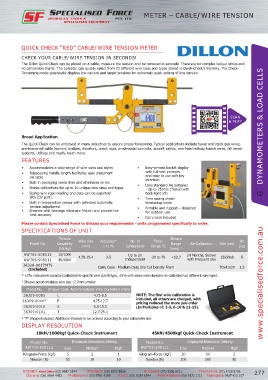

Page 287 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

METER – CABLE/WIRE TENSION

QUICK CHECK ”RED” CABLE/WIRE TENSION METER

CHECK YOUR CABLE/WIRE TENSION IN SECONDS!
The Dillon Quick-Check can be placed on a cable, measure the tension and be removed in seconds! There are no complex lookup tables and
no conversion charts. The operator can quickly select from 20 different wire sizes and types stored in Quick-Check’s memory. The Check-
Tensioning mode graphically displays the current and target tensions for extremely quick setting of line tension.

SCAN
& PLAY

G DYNAMOMETERS & LOAD CELLS
Broad Application
The Quick-Check can be employed in many industries to ensure proper tensioning. Typical applications include tower and stack guy wires,
pre-tensioned cable barriers, bridges, elevators, winch rope, prestressed concrete, aircraft cables, overhead railway transit wires, fall arrest
systems, utilities and much, much more.
FEATURES

• Accommodates a wide range of wire sizes and styles • Easy-to-read backlit display
• Telescoping handle length facilitates easy placement with full-text prompts
on cable and easy to use soft key
interface
• Built-in averaging saves time and eliminates errors • Uses standard AA batteries
• Stores calibrations for up to 20 unique wire sizes and types - Up to 250hrs (Tested with
• Stores wire rope reading and data can be exported back-light off)
(RS-232 port) • Time saving check-
• Built-in temperature sensor with patented automatic tensioning mode
tension adjustment • Portable and rugged – designed
• Sheaves with bearings eliminate friction and provide the for outdoor use
best accuracy
• Carry case included
Please contact Specialised Force to discuss your requirements - units programmed specifically to order.
SPECIFICATIONS OF UNIT
Tension Sheave
Model No. Capability Wire Size Accuracy* No. of Temp Range Re-Calibration Size (cm) Wt
(kN/kg) (mm) (±) % Calibrations Range ºC (mm) ¹ (kg)
AWT05-508112 10/1000 4.76-25.4 3-5 Up to 20 -20 to 70 <12.7 24 Months, Sooner 25x59x8 5
AWT05-508111 45/4500 Independent with Frequent Use
36328-0017MTS
(Included) Carry Case - Medium Duty, Die Cut Density Foam 70x41x20 1.5
* ±3% instrument capacity (calibrated to specific wire size & type, ±5% with same wire diameter as calibrated but different wire type).
¹ Sheave accommodates wire size 12.7mm smaller. www.specialisedforce.com.au

Model No. Sheave Code Accommodates Wire Diameters (mm)
36309-0085 L 4.75-6.5 NOTE: The first wire calibration is
36309-0044* P 4.75-12.7 included, all others are charged, with
pricing reduced the more you order
36309-0010 S 6.5-19.0 (In Multiples of: 2-5, 6-10 & 11-15).
36309-0101 T 12.7-25.4
* “P” Sheave included. Additional sheaves to be ordered according to your cable/wire size
DISPLAY RESOLUTION

10kN/1000kgf Quick-Check Instrument 45kN/4500kgf Quick-Check Instrument
Model No. Displayed Resolution Setting Model No. Displayed Resolution Setting
AWT05-508112 Low Medium High AWT05-508111 Low Medium High
Kilogram-Force (kgf) 5 2 1 Kilogram-Force (kgf) 20 10 5
Newton (N) 50 20 10 Newton (N) 200 100 50
