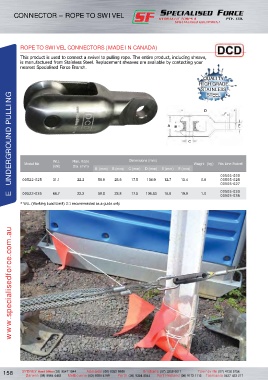

Page 168 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

CONNECTOR – ROPE TO SWIVEL

ROPE TO SWIVEL CONNECTORS (MADE IN CANADA)

This product is used to connect a swivel to pulling rope. The entire product, including sheave,
is manufactured from Stainless Steel. Replacement sheaves are available by contacting your
nearest Specialised Force Branch.

QUALITY
HIGH GRADE
STAINLESS
STEEL
E UNDERGROUND PULLING

D
F

A B E

C

WLL Max. Rope Dimensions (mm)
Model No. Weight (kg) Fits Line Swivel
(kN) Dia. (mm)
A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
00505-020
00522-025 31.1 22.2 50.8 23.8 17.5 134.9 12.7 13.4 0.9 00505-025
00505-027
00505-030
00522-035 66.7 22.2 50.8 23.8 17.5 136.53 16.6 19.0 1.0
00505-035
* WLL (Working Load Limit) 3:1 recommended as a guide only
