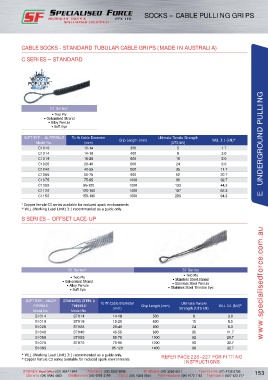

Page 163 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

SOCKS – CABLE PULLING GRIPS

CABLE SOCKS - STANDARD TUBULAR CABLE GRIPS (MADE IN AUSTRALIA)

C SERIES – STANDARD

MOST
POPULAR

C1 Series 1
• Two Ply
• Galvanised Strand
• Alloy Ferrule
• Soft Eye

SOFT EYE - AL FERRULE To fit Cable Diameter Grip Length (mm) Ultimate Tensile Strength WLL 3:1 (kN)*
Model No. (mm) (UTS kN) E UNDERGROUND PULLING
C1010 10-14 350 5 1.7
C1014 14-19 400 9 3.0
C1019 19-28 500 15 5.0
C1028 28-40 600 24 8.0
C1040 40-55 800 35 11.7
C1055 55-75 900 62 20.7
C1075 75-95 1000 98 32.7
C1095 95-120 1200 133 44.3
C1120 120-150 1400 187 62.3
C1150 150-190 1600 283 94.3
1 Copper ferrule C3 series available for reduced spark environments
* WLL (Working Load Limit) 3:1 recommended as a guide only.

S SERIES – OFFSET LACE-UP

S1 Series* S7 Series
• Two Ply
• Two Ply • Stainless Steel Strand
• Galvanised Strand • Stainless Steel Ferrule
• Alloy Ferrule • Stainless Steel Thimble Eye www.specialisedforce.com.au
• Soft Eye

SOFT EYE – ALLOY STAINLESS STEEL &
FERRULE THIMBLE To fit Cable Diameter Grip Length (mm) Ultimate Tensile WLL 3:1 (kN)*
Model No. Model No. (mm) Strength (UTS kN)
S1014 S7014 14-19 500 9 3.0
S1019 S7019 19-28 600 15 5.0
S1028 S7028 28-40 800 24 8.0
S1040 S7040 40-55 900 35 11.7
S1055 S7055 55-75 1000 62 20.7
S1075 S7075 75-95 1200 98 32.7
S1095 - 95-120 1400 98 32.7
* WLL (Working Load Limit) 3:1 recommended as a guide only. REFER PAGE 226–227 FOR FITTING
* Copper ferrule C3 series available for reduced spark environments
INSTRUCTIONS
