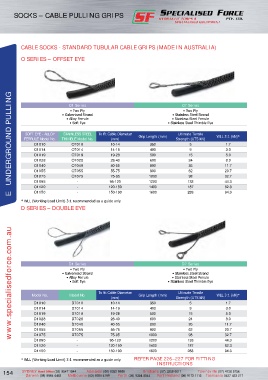

Page 164 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

SOCKS – CABLE PULLING GRIPS

CABLE SOCKS - STANDARD TUBULAR CABLE GRIPS (MADE IN AUSTRALIA)

O SERIES – OFFSET EYE

E UNDERGROUND PULLING

O1 Series O7 Series
• Two Ply • Two Ply
• Galvanised Strand • Stainless Steel Strand
• Alloy Ferrule • Stainless Steel Ferrule
• Soft Eye • Stainless Steel Thimble Eye

SOFT EYE - ALLOY STAINLESS STEEL To fit Cable Diameter Ultimate Tensile
FERRULE Model No. THIMBLE Model No. (mm) Grip Length (mm) Strength (UTS kN) WLL 3:1 (kN)*
O1010 O7010 10-14 350 5 1.7
O1014 O7014 14-19 400 9 3.0
O1019 O7019 19-28 500 15 5.0
O1028 O7028 28-40 600 24 8.0
O1040 O7040 40-55 800 35 11.7
O1055 O7055 55-75 900 62 20.7
O1075 O7075 75-95 1000 98 32.7
O1095 - 95-120 1200 133 44.3
O1120 - 120-150 1400 187 62.3
O1150 - 150-190 1600 283 94.3

* WLL (Working Load Limit) 3:1 recommended as a guide only.
D SERIES – DOUBLE EYE

www.specialisedforce.com.au

D1 Series D7 Series
• Two Ply • Two Ply
• Galvanised Strand • Stainless Steel Strand
• Alloy Ferrule • Stainless Steel Ferrule
• Soft Eye • Stainless Steel Thimble Eye

To fit Cable Diameter Ultimate Tensile
Model No. Model No. Grip Length (mm) WLL 3:1 (kN)*
(mm) Strength (UTS kN)
D1010 D7010 10-14 350 5 1.7
D1014 D7014 14-19 400 9 3.0
D1019 D7019 19-28 500 15 5.0
D1028 D7028 28-40 600 24 8.0
D1040 D7040 40-55 800 35 11.7
D1055 D7055 55-75 900 62 20.7
D1075 D7075 75-95 1000 98 32.7
D1095 - 95-120 1200 133 44.3
D1120 - 120-150 1400 187 62.3
D1150 - 150-190 1600 283 94.3

* WLL (Working Load Limit) 3:1 recommended as a guide only. REFER PAGE 226–227 FOR FITTING
INSTRUCTIONS
