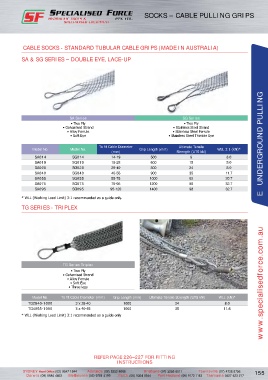

Page 165 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

SOCKS – CABLE PULLING GRIPS

CABLE SOCKS - STANDARD TUBULAR CABLE GRIPS (MADE IN AUSTRALIA)

SA & SG SERIES – DOUBLE EYE, LACE-UP

SA Series SG Series
• Two Ply • Two Ply
• Galvanised Strand • Stainless Steel Strand
• Alloy Ferrule • Stainless Steel Ferrule
• Soft Eye • Stainless Steel Thimble Eye

To fit Cable Diameter Ultimate Tensile E UNDERGROUND PULLING
Model No. Model No. Grip Length (mm) WLL 3:1 (kN)*
(mm) Strength (UTS kN)
SA014 SG014 14-19 500 9 3.0
SA019 SG019 19-28 600 15 5.0
SA028 SG028 28-40 800 24 8.0
SA040 SG040 40-55 900 35 11.7
SA055 SG055 55-75 1000 62 20.7
SA075 SG075 75-95 1200 98 32.7
SA095 SG095 95-120 1400 98 32.7
* WLL (Working Load Limit) 3:1 recommended as a guide only.
TG SERIES - TRIPLEX

TG Series Triplex
• Two Ply
• Galvanised Strand
• Alloy Ferrule
• Soft Eye www.specialisedforce.com.au
• Three legs

Model No. To fit Cable Diameter (mm) Grip Length (mm) Ultimate Tensile Strength (UTS kN) WLL (kN)*
TG2840-1000 3 x 28-40 1000 24 8.0
TG4055-1000 3 x 40-55 1000 35 11.6
* WLL (Working Load Limit) 3:1 recommended as a guide only

REFER PAGE 226–227 FOR FITTING
INSTRUCTIONS
