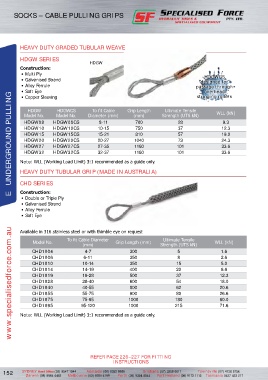

Page 162 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

SOCKS – CABLE PULLING GRIPS

HEAVY DUTY GRADED TUBULAR WEAVE

HDGW SERIES
HDGW HDGWCS
Construction:
• Multi Ply
HDGWCS
• Galvanised Strand designed for
• Alloy Ferrule passage through
• Soft Eye overhead
E UNDERGROUND PULLING
• Copper Sleeving stringing rollers

HDGW HDGWCS To fit Cable Grip Length Ultimate Tensile WLL (kN)
Model No. Model No. Diameter (mm) (mm) Strength (UTS kN)
HDGW08 HDGW08CS 8-11 700 28 9.3
HDGW10 HDGW10CS 10-15 750 37 12.3
HDGW15 HDGW15CS 15-21 810 57 19.0
HDGW20 HDGW20CS 20-27 1040 73 24.3
HDGW27 HDGW27CS 27-35 1160 101 33.6
HDGW32 HDGW32CS 32-37 1160 101 33.6

Note: WLL (Working Load Limit) 3:1 recommended as a guide only.
HEAVY DUTY TUBULAR GRIP (MADE IN AUSTRALIA)

CHD SERIES
Construction:
• Double or Triple Ply
• Galvanised Strand
• Alloy Ferrule
• Soft Eye

www.specialisedforce.com.au
Available in 316 stainless steel or with thimble eye on request
To fit Cable Diameter Ultimate Tensile
Model No. Grip Length (mm) WLL (kN)
(mm) Strength (UTS kN)
CHD1004 4-7 300 5 1.6
CHD1006 6-11 350 8 2.6
CHD1010 10-14 350 15 5.0
CHD1014 14-19 400 20 6.6
CHD1019 19-28 500 37 12.3
CHD1028 28-40 600 54 18.0
CHD1040 40-55 800 62 20.6
CHD1055 55-75 900 80 26.6
CHD1075 75-95 1000 180 60.0
CHD1095 95-120 1000 215 71.6
Note: WLL (Working Load Limit) 3:1 recommended as a guide only.

REFER PAGE 226–227 FOR FITTING
INSTRUCTIONS
