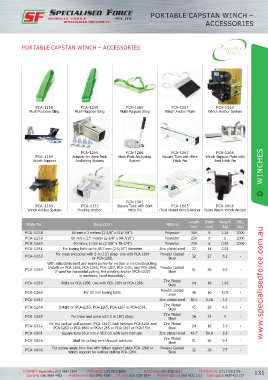

Page 141 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PORTABLE CAPSTAN WINCH –
ACCESSORIES

PORTABLE CAPSTAN WINCH – ACCESSORIES

PCA-1258 PCA-1259 PCA-1260 PCA-1261 PCA-1263
Multi-Purpose Sling Multi-Purpose Sling Multi-Purpose Sling Winch Anchor Plate Winch Anchor System

D WINCHES
PCA-1265 PCA-1266 PCA-1267 PCA-1268
PCA-1264 Adapter for Heck-Pack Heck-Pack Anchoring Square Tube with Bent Winch Support Plate with
Winch Support Anchoring System System Hitch Pin Bent Hitch Pin

PCA-1501
PCA-1269 PCA-1332 Square Tube with Bent PCA-1805 PCA-1806
Winch Anchor System Pivoting Anchor Hitch Pin Floor Mount Winch Anchor Pylon Mount Winch Anchor

Length Width Weight WLL
Model No. Description Material
(cm) (cm) (kg) (kg)
PCA-1258 60 mm x 3 metres (2-3/8’’ x 118-1/8’’). Polyester 300 6 1.24 2000
PCA-1259 60 mm x 2.5 metres (2-3/8’’ x 98-7/16’’) Polyester 250 6 1 2000
PCA-1260 60 mm x 2 metres (2-3/8’’ x 78-3/4’’) Polyester 200 6 0.92 2000
PCA-1261 For towing balls up to 58.7 mm (2-5/16’’) diameter. Zinc plated steel 27 14 0.91
For trees and poles with 3 m (10’) strap. Use with PCA-1264 Powder Coated
PCA-1263 32 27 8.2 -
or PCA-1268. Steel
With adjustable shelf and swivel pulley for vertical or horizontal pulling.
PCA-1264 Installs on PCA-1263, PCA-1265, PCA-1267, PCA-1501, and PCA-1806. Powder Coated 61 26 9.2 -
If used for horizontal pulling, the pivoting anchor (PCA-1332) Steel
is necessary (sold separately).
PCA-1265 Bolts on PCA-1266. Use with PCA-1264 or PCA-1268. Zinc Plated 14 16 1.45 - www.specialisedforce.com.au
Steel
PCA-1266 For 50 mm towing balls. Powder coated 46 16 3.05 -
steel
PCA-1267 - Zinc plated steel 30.5 5.08 2.2 -
Zinc Plated
PCA-1268 Installs on PCA-1263, PCA-1265, PCA-1267 or PCA-1501. 45 29 4.5 -
Steel
PCA-1269 For trees and poles with 3 m (10’) strap. Zinc Plated 26 24 4 -
Steel
PCA-1332 For the vertical pull support (PCA-1264). Link between PCA-1264 and Zinc Plated 24 16 3.3 -
Steel
PCA-1263 or PCA-1806 or PCA-1265 or PCA-1267 or PCA-1501.
PCA-1501 Square tube 50.8 mm x 45.7 cm with bent hitch pin. Zinc plated steel 45.7 50.8 3.3 -
PCA-1805 Ideal for pulling wire through conduits. Zinc Plated 51 26 9.4 -
Steel
For pylons angle iron. Use with Winch support plate PCA-1268 or Powder Coated
PCA-1806 32 28 7.7 -
Winch support for vertical pulling PCA-1264. Steel
