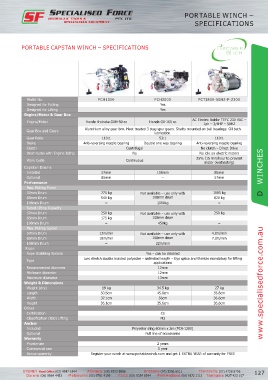

PORTABLE WINCH –
SPECIFICATIONS

PORTABLE CAPSTAN WINCH – SPECIFICATIONS

Model No. PCH1000 PCH2000 PCT1800-50HZ-P-230V
Designed for Pulling Yes
Designed for Lifting Yes
Engine/Motor & Gear Box
Engine/Motor Honda 4-stroke GXH-50 cc Honda GX-160 cc AC Electric Baldor TEFC 230 VAC –
1ph – 3/4HP – 50HZ
Aluminium alloy gear box. Heat treated 3 stag spur gears. Shafts mounted on ball bearings. Oil bath
Gear Box and Gears lubrication.
Gear Ratio 110:1 53:1 110:1
Brake Anti-reversing needle bearing Double one way bearing Anti-reversing needle bearing
Clutch Centrifugal No clutch – Direct Drive
Drum turns with Engine Idling No No idle on electric motors
25% (15 min/hour to prevent
Work Cycle Continuous
motor overheating)
Capstan Drums
Installed 57mm 108mm 85mm D WINCHES
Optional 85mm – 57mm
Performance
Max. Pulling Force
57mm Drum 775 kg Not available – use only with 1000 kg
85mm Drum 540 kg 108mm drum 820 kg
108mm Drum – 1000kg –
Rated Lifting Capacity
57mm Drum 250 kg Not available – use only with 250 kg
85mm Drum 175 kg 108mm drum
108mm Drum – 450kg –
Max. Pulling Speed
57mm Drum 12m/min Not available – use only with 4.8m/min
85mm Drum 18m/min 108mm drum 7.2m/min
108mm Drum – 22m/min
Rope
Rope Grabbing System Yes – can be disabled
Low stretch double braided polyester – unlimited length – Eye splice and thimble mandatory for lifting
Type
applications
Recommended diameter 12mm
Minimum diameter 12mm
Maximum diameter 13mm
Weight & Dimensions www.specialisedforce.com.au
Weight (dry) 19 kg 34.5 kg 27 kg
Length 50.5cm 45.8cm 55.6cm
Width 37.1cm 56cm 36.6cm
Height 36.1cm 35.6cm 36.6cm
Other
Certification CE
Classification (ISO) Lifting M3
Anchor
Included Polyester sling 60mm x 2m (PCA-1260)
Optional Full line of accessories
Warranty
Private use 2 years
Commercial use 1 year
Bonus warranty Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE
