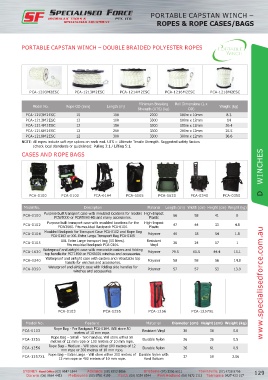

Page 139 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PORTABLE CAPSTAN WINCH –
ROPES & ROPE CASES/BAGS

PORTABLE CAPSTAN WINCH – DOUBLE BRAIDED POLYESTER ROPES

PCA-1203M2ESC PCA-1213M2ESC PCA-1214M2ESC PCA-1216M2ESC PCA-1218M2ESC

Minimum Breaking Roll Dimensions (L x
Model No. Rope OD (mm) Length (m) Weight (kg)
Strength (UTS) (kg) OD)
PCA-1203M2ESC 10 100 2200 100m x 10mm 8.3
PCA-1213M2ESC 12 100 3300 100m x 12mm 14
PCA-1214M2ESC 12 150 3300 150m x 12mm 20.4
PCA-1216M2ESC 12 200 3300 200m x 12mm 25.5
PCA-1218M2ESC 12 300 3300 300m x 12mm 36.6
NOTE: All ropes include soft eye splices on each end. UTS = Ultimate Tensile Strength. Suggested safety factors
(check local standards or guidelines): Pulling 3:1 / Lifting 5:1.
D WINCHES
CASES AND ROPE BAGS

PCA-0100 PCA-0102 PCA-0104 PCA-0105 PCA-1630 PCA-0340 PCA-0350

Model No. Description Material Length (cm) Width (cm) Height (cm) Weight (kg)
PCA-0100 Purpose built transport case with moulded locations for models High-Impact 66 58 41 8
PCW5000 or PCW5000-HS and many accessories. Plastic
PCA-0102 Purpose built transport case with moulded locations for the High-Impact 47 44 33 4.8
Plastic
PCW3000. Fits moulded Backpack PCA-0104.
PCA-0104 Moulded Backpack for Transport Case PCA-0102 and Rope Bag Polymer 40 18 54 1.8
PCA-0103 or XXL Extra Large Transport Bag PCA-0105
PCA-0105 XXL Extra Large transport bag (50 litres). Resistant 26 24 17 1
Fits moulded backpack PCA-0104.
Vinyl
PCA-1630 Waterproof and airtight case with removable casters and folding Polymer 79.5 61.5 44.4 15.1
top handle for PCT1800 or PCH2000 winches and accessories.
PCA-0340 Waterproof and airtight case with casters and retractable top Polymer 58 58 56 14.8
handle for winches and accessories.
PCA-0350 Waterproof and airtight case with folding side handles for Polymer 57 57 53 13.9 www.specialisedforce.com.au
winches and accessories.

PCA-0103 PCA-1255 PCA-1256 PCA-1257XL

Model No. Feature Material Diameter (cm) Height (cm) Weight (kg)
PCA-0103 Rope Bag - For Backpack PCA-0104. Will store 50 Resistant Vinyl 30 38 0.6
metres of 10 mm rope.
Rope Bag – Small - Two handles. Will store either 50
PCA-1255 metres of 12 mm rope or 100 metres of 10 mm rope. Durable Nylon 26 36 0.5
PCA-1256 Rope Bag – Medium - Will store either 100 metres of 12 Durable Nylon 26 61 0.9
mm rope or 200 metres of 10 mm rope.
PCA-1257XL Rope Bag – Extra Large - Will store either 200 metres of Durable Nylon with 37 59 2.06
Hard Bottom
12 mm rope or 400 metres of 10 mm rope.
