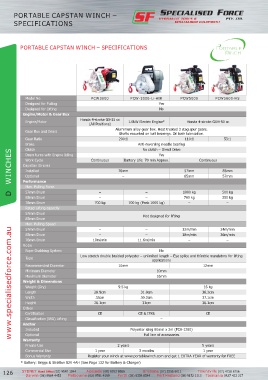

PORTABLE CAPSTAN WINCH –
SPECIFICATIONS

PORTABLE CAPSTAN WINCH – SPECIFICATIONS

Model No. PCW3000 PCW-3000-Li-AIK PCW5000 PCW5000-HS
Designed for Pulling Yes
Designed for Lifting No
Engine/Motor & Gear Box
Engine/Motor Honda 4-stroke GX-35 cc 1.0kW Electric Engine* Honda 4-stroke GXH-50 cc
(All Positions)
Aluminium alloy gear box. Heat treated 3 stag spur gears.
Gear Box and Gears
Shafts mounted on ball bearings. Oil bath lubrication.
Gear Ratio 200:1 110:1 53:1
Brake Anti-reversing needle bearing
Clutch
No clutch – Direct Drive
D WINCHES Capstan Drums Continuous 76mm 57mm Continuous 85mm
Yes
Drum turns with Engine Idling
Work Cycle
Battery Life: 70 min Approx.
Installed
Optional
57mm
–
85mm
Performance
Max. Pulling Force
57mm Drum
–
85mm Drum – – – 1000 kg 500 kg
700 kg
350 kg
76mm Drum 700 kg 700 kg (Peak 1000 kg) – –
Rated Lifting capacity
57mm Drum Not designed for lifting
85mm Drum
Max. Pulling Speed
www.specialisedforce.com.au
57mm Drum – – 12m/min 24m/min
85mm Drum – – 18m/min 36m/min
76mm Drum 10m/min 11.6m/min – –
Rope
Rope Grabbing System No
Type Low stretch double braided polyester – unlimited length – Eye splice and thimble mandatory for lifting
applications
Recommended Diameter 10mm 12mm
Minimum Diameter 10mm
Maximum Diameter 16mm
Weight & Dimensions
Weight (Dry) 9.5 kg 16 kg
Length 28.9cm 31.8cm 36.2cm
Width 35cm 30.2cm 37.1cm
Height 26.1cm 31cm 36.1cm
Other
Certification CE CE & IPX6 CE
Classification (ISO) Lifting –
Anchor
Included Polyester sling 60mm x 2m (PCA-1260)
Optional Full line of accessories
Warranty
Private Use 2 years 5 years
Commercial Use 1 year 3 months 1 year
Bonus Warranty Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE
* Battery: Briggs & Stratton 82V 4AH (See Page 132 for Battery & Charger)
