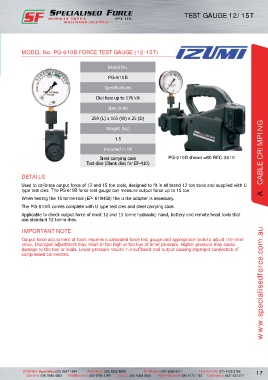

Page 27 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

TEST GAUGE 12/15T

MODEL No. PG-610B FORCE TEST GAUGE (12-15T)

Model No.
PG-610B

Specifications

Dial face up to 176 kN

Size (mm)

250 (L) x 105 (W) x 25 (D)

Weight (kg)

1.5
Included in Kit

Steel carrying case PG-610B shown with REC-3610 A CABLE CRIMPING
Test dies (Blank dies for EP-410)

DETAILS
Used to calibrate output force of 12 and 15 ton tools, designed to fit in all brand 12 ton tools and supplied with U
type test dies. The PG-610B force test gauge can measure output force up to 15 ton.
When testing the 15 tonne tool (EP- 610HS2) the U die adapter is necessary.
The PG-610B comes complete with U type test dies and steel carrying case.

Applicable to check output force of most 12 and 15 tonne hydraulic; hand, battery and remote head tools that
use standard 12 tonne dies.

IMPORTANT NOTE

Output force adjustment of tools requires a calibrated force test gauge and appropriate tools to adjust the relief
valve. Improper adjustment may result in too high or too low of inner pressure. Higher pressure may cause
damage to the tool or seals. Lower pressure results in insufficient tool output causing improper connection of
compressed connectors. www.specialisedforce.com.au
