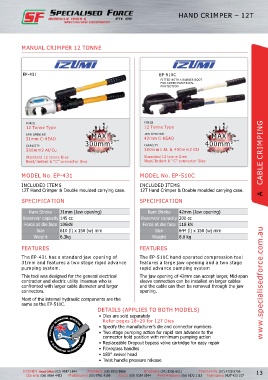

Page 23 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

HAND CRIMPER – 12T

MANUAL CRIMPER 12 TONNE

EP-431 EP-510C
FITTED WITH A RUBBER BOOT
FOR ADDED ELECTRICAL
PROTECTION

FORCE FORCE
12 Tonne Type 12 Tonne Type
JAW OPENING MAX JAW OPENING MAX
31mm C-HEAD 2 42mm C-HEAD 2
CAPACITY 300mm CAPACITY 400mm
300mm2 Al/Cu 300mm2 AL & 400mm2 CU
Standard 12 tonne Dies Standard 12 tonne Dies A CABLE CRIMPING
Nest/Indent & “C” connector Dies Nest/Indent & “C” connector Dies

MODEL No. EP-431 MODEL No. EP-510C
INCLUDED ITEMS INCLUDED ITEMS
12T Hand Crimper & Double moulded carrying case. 12T Hand Crimper & Double moulded carrying case.

SPECIFICATION SPECIFICATION

Ram Stroke 31mm (Jaw opening) Ram Stroke 42mm (Jaw opening)
Reservoir capacity 145 cc Reservoir capacity 200 cc
Force at die face 106kN Force at die face 118 kN
Size 610 (l) x 150 (w) mm Size 644 (l) x 150 (w) mm
Weight 6.3kg Weight 8.0 kg

FEATURES FEATURES
The EP-431 has a standard jaw opening of The EP-510C hand operated compression tool
31mm and features a two stage rapid advance features a large jaw opening and a two stage
pumping system. rapid advance pumping system

This tool was designed for the general electrical The jaw opening of 42mm can accept larger, Mid-span
contractor and electric utility linesman who is sleeve connection can be installed on larger cables
confronted with larger cable diameter and larger and the cable can then be removed through the jaw www.specialisedforce.com.au
connectors. opening.
Most of the internal hydraulic components are the
same as the EP-510C.
DETAILS (APPLIES TO BOTH MODELS)
• Dies are sold separately
Refer pages 18–20 for 12T Dies
PROUDLY MARKETED, SERVICED • Specify the manufacturer’s die and connector numbers
• Two stage pumping action for rapid ram advance to the
& SUPPORTED AUSTRALIA WIDE connector hold position with minimum pumping action
• Replaceable Dropout bypass valve cartridge for easy repair
• Fibreglass handles
• 180° swivel head
• Twist handle pressure release
