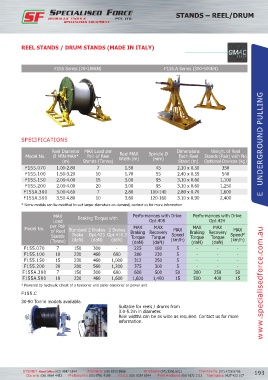

STANDS – REEL/DRUM

REEL STANDS / DRUM STANDS (MADE IN ITALY)

F155 Series (70-180kN) F155.A Series (300-500kN)

SPECIFICATIONS E UNDERGROUND PULLING

Reel Diameter MAX Load per Reel MAX Spindle Ø Dimensions Weight of Reel
Model No. Ø MIN-MAX* Pair of Reel Width (m) (mm) Each Reel Stands (Pair) with No
(m) Stands (Tonne) Stand (m) Optional Devices (kg)
F155.070 1.00-2.80 7 1.50 45 2.10 x 0.50 350
F155.100 1.50-3.20 10 1.70 55 2.40 x 0.55 540
F155.150 2.00-4.00 15 3.00 95 3.10 x 0.60 1,100
F155.200 2.00-4.00 20 3.00 95 3.10 x 0.60 1,250
F155A.300 3.00-4.60 7 2.80 100-140 2.80 x 0.70 1,600
F155A.500 3.50-4.80 10 3.60 120-160 3.10 x 0.90 2,400
* Some models can be modified to suit larger diameters on demand, contact us for more information

MAX Braking Torque with Performances with Drive Performances with Drive
Load Opt.408 Opt.424
per Pair MAX MAX MAX MAX
Model No. Standard 2 Brakes 2 Brakes MAX MAX
of Reel Braking Recovery Braking Recovery
Stands Brake Opt.423 Opt.410.3 Torque Torque Speed Torque Torque Speed²
(Tonne) (daN) (daN) (daN) (daN) (daN) (km/h) (daN) (daN) (km/h)
F155.070 7 150 300 - 225 180 5 - - -
F155.100 10 230 460 600 280 230 5 - - -
F155.150 15 230 460 1,000 312 250 5 - - -
F155.200 20 280 560 1,200 375 300 5 - - -
F155A.300 7 150 300 600 600 500 50 300 250 50
F155A.500 10 230 460 1,600 1,600 1,400 15 500 400 15
² Powered by hydraulic circuit of a tensioner and puller-tensioner or power unit www.specialisedforce.com.au
F155.C

30-90 Tonne models available.
Suitable for reels / drums from
3.0-5.2m in diameter.
Reel widths can be as wide as required. Contact us for more
information.
