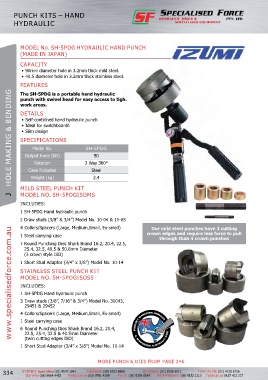

Page 346 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUNCH KITS – HAND
HYDRAULIC

MODEL No. SH-5PDG HYDRAULIC HAND PUNCH
(MADE IN JAPAN)

CAPACITY
• 90mm diameter hole in 3.2mm thick mild steel.
• 40.5 diameter hole in 3.2mm thick stainless steel.
FEATURES

J HOLE MAKING & BENDING
The SH-5PDG is a portable hand hydraulic
punch with swivel head for easy access to tight
work areas.
DETAILS
• Self-contained hand hydraulic punch
• Ideal for switchboards
• Slim design
SPECIFICATIONS
Model No. SH-5PDG
Output force (kN) 50
Rotation 2 Way 360°
Case Included Steel
Weight (kg) 2.4

MILD STEEL PUNCH KIT
MODEL NO. SH-5PDGISOMS

INCLUDES:
1 SH-5PDG Hand hydraulic punch
2 Draw studs (3/8” & 3/4”) Model No. 10-04 & 10-05
4 Collars/Spacers (Large, Medium,Small, Ex-small) Our mild steel punches have 3 cutting
www.specialisedforce.com.au
1 Steel carrying case crown edges and require less force to pull
through than 4 crown punches
7 Round Punching Dies Shark Brand 16.2, 20.4, 22.5,
25.4, 32.5, 40.5 & 50.8mm Diameter
(3 crown style ISO)
1 Short Stud Adaptor (3/4” x 3/8”) Model No. 10-14
STAINLESS STEEL PUNCH KIT
MODEL NO. SH-5PDGISOSS
INCLUDES:
1 SH-5PDG Hand hydraulic punch
3 Draw studs (3/8”, 7/16” & 3/4”) Model No. 30043,
29451 & 29452
4 Collars/Spacers (Large, Medium,Small, Ex-small)
1 Steel carrying case
6 Round Punching Dies Shark Brand 16.2, 20.4, PROUDLY MARKETED, SERVICED
22.5, 25.4, 32.5 & 40.5mm Diameter & SUPPORTED AUSTRALIA WIDE
(twin cutting edges ISO)
1 Short Stud Adaptor (3/4” x 3/8”) Model No. 10-14

MORE PUNCH & DIES FROM PAGE 346
