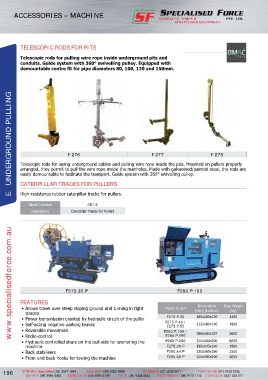

Page 206 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

ACCESSORIES – MACHINE

TELESCOPIC RODS FOR PITS

Telescopic rods for pulling wire rope inside underground pits and
conduits. Guide system with 360° swivelling pulley. Equipped with
demountable centre fit for pipe diameters 80, 100, 120 and 150mm.

E UNDERGROUND PULLING

F 276 F 277 F 278

Telescopic rods for laying underground cables and pulling wire rope inside the pits. Mounted on pullers properly
arranged, they permit to pull the wire rope inside the manholes. Made with galvanised/painted steel, the rods are
easily demountable to facilitate the transport. Guide system with 360° swivelling pulley.

CATERPILLAR TRACKS FOR PULLERS

High-resistance rubber caterpillar tracks for pullers.

Model Number 051.3
Description Caterpillar Tracks for Pullers

www.specialisedforce.com.au

F275.30.P F280.P.100

FEATURES
Dimensions
• Allows travel over steep sloping ground and turning in tight Tracks to Suit (mm) (LxWxH) Total Weight
(kg)
spaces
• Power transmission granted by hydraulic circuit of the puller F215.P.30 180x160x120 1350
• Self-acting negative parking brakes F275.P.40 / 215x180x140 1800
F275.P.50
• Reversible movement F280.P.100 /
• Radio-control F285.P.100 286x185x187 3600
• Hydraulic controlled share on the pull side for anchoring the F260.P.200 310x200x200 6000
machine F275.30.P 195x145x140 1500
• Back stabilisers F280.40.P 220x160x160 2300
• Front and back hooks for towing the machine F230.60.P 320x195x200 3000
