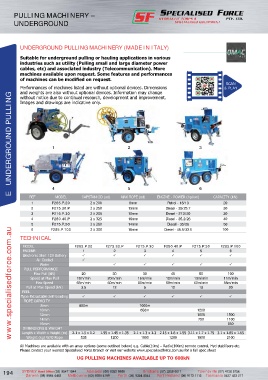

PULLING MACHINERY –
UNDERGROUND

UNDERGROUND PULLING MACHINERY (MADE IN ITALY)

Suitable for underground pulling or hauling applications in various
industries such as utility (Pulling small and large diameter power
cables, etc) and associated industry (Telecommunication). More
machines available upon request. Some features and performances
of machines can be modified on request.
SCAN
Performances of machines listed are without optional devices. Dimensions & PLAY
and weights are also without optional devices. Information may change
E UNDERGROUND PULLING
without notice due to continual research, development and improvement.
Images and drawings are indicative only.

1 2 3

4 5 6

REF MODEL CAPSTAN OD (od) MAX ROPE (od) ENGINE - POWER (hp/kw) CAPACITY (kN)
1 F265.P.20 2 x 200 8mm Petrol - 18/13 20
2 F275.30.P 2 x 250 13mm Diesel - 35/25.7 30
3 F215.P.30 2 x 200 10mm Diesel - 27.2/20 30
4 F280.40.P 2 x 325 16mm Diesel - 35.2/26 40
5 F275.P.50 2 x 280 14mm Diesel - 35/26 50
www.specialisedforce.com.au
6 F285.P.100 2 x 300 16mm Diesel - 45.5/33.5 100
TECHNICAL

MODEL F265.P.20 F275.30.P F215.P.30 F280.40.P F275.P.50 F285.P.100
ENGINE 1 2 3 4 5 6
Electronic Start 12V Battery      
Air Cooled 
Water     
PULL PERFORMANCE
Max Pull (kN) 20 30 30 40 50 100
Speed at Max Pull 18m/min 20m/min 16m/min 18m/min 13m/min 11m/min
Max Speed 65m/min 60m/min 80m/min 60m/min 60m/min 55m/min
Pull at Max Speed (kN) 3.5 12 5 12 13 20
REEL
Type-Extractable Self-Loading      
ROPE CAPACITY
8mm 800m 1000m
10mm 650m 1200
12mm 1000 1500
14mm 750 1100
16mm 850
DIMENSIONS & WEIGHT
Length x Width x Height (m) 2.1 x 1.5 x 1.2 1.95 x 1.45 x 1.35 2.1 x 1.3 x 1.3 2.15 x 1.6 x 1.55 3.11 x 1.7 x 1.75 3.1 x 1.85 x 1.65
Weight (kg) W/O Rope 535 1200 1000 1200 1900 2100
All Machines are available with an array options (some outlined below) e.g. Cable(10m) – Radio(100m) remote control, Hyd stabilisers etc.
Please contact your nearest Specialised Force Branch or visit our website www.specialisedforce.com.au for a full spec sheet
UG PULLING MACHINES AVAILABLE UP TO 600kN
