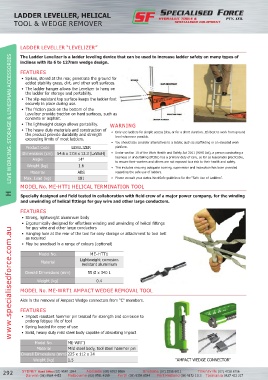

Page 304 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

LADDER LEVELLER, HELICAL
TOOL & WEDGE REMOVER

LADDER LEVELLER “LEVELIzER”

LIVE WORKING. STORAGE & LINESMAN ACCESSORIES
The Ladder Levelizer is a ladder leveling device that can be used to increase ladder safety on many types of
inclines with its 6 to 127mm wedge design.
FEATURES
• Spikes, stored at the rear, penetrate the ground for
added stability grass, dirt, and other soft surfaces.
• The ladder hanger allows the Levelizer to hang on
the ladder for storage and portability.
• The slip-resistant top surface keeps the ladder foot
securely in place during use.
• The friction pads on the bottom of the
Levelizer provide traction on hard surfaces, such as
concrete or asphalt.
• The lightweight design allows portability. WARNING
• The heavy duty materials and construction of
the product provide durability and strength • Only use ladders for simple access jobs, or for a short duration. It’s best to work from ground
exceeding limits of most ladders. level whenever possible.
• You should also consider alternatives to a ladder, such as scaffolding or an elevated work
Product Code LEvELIZER platform.
Dimensions (cm) 54.6 x 17.8 x 13.3 (LxWxH) • Under section 19 of the Work Health and Safety Act 2011 (WHS Act), a person conducting a
Angle 14° business or undertaking (PCBU) has a primary duty of care, so far as reasonably practicable,
to ensure their workers and others are not exposed to a risk to their health and safety.
Weight (kg) 1.6 • This includes ensuring adequate training, supervision and instruction has been provided
Material ABS regarding the safe use of ladders.
Max. Load (kg) 181 • Please consult your states WorkSafe guidelines for the “Safe Use of Ladders”.
H MODEL No. ME-HTT1 HELICAL TERMINATION TOOL

Specially designed and field tested in collaboration with field crew of a major power company, for the winding
and unwinding of helical fittings for guy wire and other large conductors.

FEATURES
• Strong, lightweight aluminium body
• Ergonomically designed for effortless winding and unwinding of helical fittings
for guy wire and other large conductors
www.specialisedforce.com.au
• Hanging hole at the rear of the tool for easy storage or attachment to tool belt
as required
• May be anodised in a range of colours (optional)

Model No. ME-HTT1
Material Lightweight corrosion
resistant aluminium
Overall Dimensions (mm) 55 Ø x 340 L
Weight (kg) 0.4

MODEL No. ME-WRT1 AMPACT WEDGE REMOVAL TOOL
Aids in the removal of Ampact Wedge connectors from “C” members.

FEATURES
• Impact resistant hammer pin treated for strength and corrosion to
prolong fatigue life of tool
• Spring loaded for ease of use
• Solid, heavy duty mild steel body capable of absorbing impact

Model No. ME-WRT1
Material Mild steel body, tool steel hammer pin
Overall Dimensions (mm) 225 x 112 x 24
Weight (kg) 1.5 “AMPACT WEDGE CONNECTOR”
