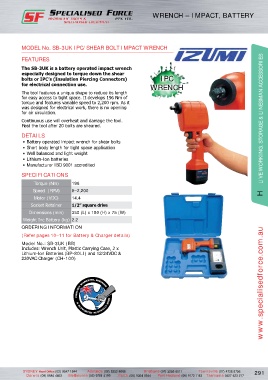

Page 303 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

WRENCH – IMPACT, BATTERY

MODEL No. SB-3UK IPC/SHEAR BOLT IMPACT WRENCH

FEATURES

The SB-3UK is a battery operated impact wrench
especially designed to torque down the shear
bolts or IPC’s (Insulation Piercing Connectors) IPC
for electrical connection use. WRENCH

The tool features a unique shape to reduce its length
for easy access to tight space. It develops 196 Nm of
torque and features variable speed to 2,200 rpm. As it
was designed for electrical work, there is no opening
for air circulation.

Continuous use will overheat and damage the tool. LIVE WORKING. STORAGE & LINESMAN ACCESSORIES
Rest the tool after 20 bolts are sheared.
DETAILS
• Battery operated impact wrench for shear bolts
• Short body length for tight space application
• Well balanced and light weight
• Lithium-Ion batteries
• Manufacturer ISO 9001 accredited
SPECIFICATIONS

Torque (Nm) 196
Speed (RPM) 0–2,200 H
Motor (VDC) 14.4
Socket Retainer 1/2” square drive
Dimensions (mm) 350 (L) x 180 (H) x 75 (W)
Weight Inc Battery (kg) 2.2
ORDERING INFORMATION
(Refer pages 10–11 for Battery & Charger details)
Model No.: SB-3UK (BB)
Includes: Wrench Unit, Plastic Carrying Case, 2 x
Lithium-Ion Batteries (BP-80LI) and 12/24VDC &
230VAC Charger (CH-100)
