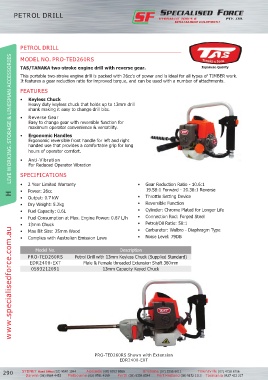

Page 302 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PETROL DRILL

PETROL DRILL

LIVE WORKING. STORAGE & LINESMAN ACCESSORIES
MODEL NO. PRO-TED260RS
TAS/TANAKA two-stroke engine drill with reverse gear. Japanese Quality
This portable two-stroke engine drill is packed with 26cc’s of power and is ideal for all types of TIMBER work.
It features a gear reduction ratio for improved torque, and can be used with a number of attachments.
FEATURES

• Keyless Chuck
Heavy duty keyless chuck that holds up to 13mm drill
shank making it easy to change drill bits.

• Reverse Gear
Easy to change gear with reversible function for
maximum operator convenience & versatility.

• Ergonomic Handles
Ergonomic reversible front handle for left and right
handed use that provides a comfortable grip for long
hours of operator comfort.

• Anti-Vibration
For Reduced Operator Vibration
SPECIFICATIONS

H • 2 Year Limited Warranty • Gear Reduction Ratio - 10.6:1
19.58:1 Forward - 20.38:1 Reverse
• Power: 26cc
• Output: 0.7 kW • Throttle Setting Device
• Dry Weight: 5.2kg • Reversible Function
• Fuel Capacity: 0.6L • Cylinder: Chrome Plated for Longer Life
• Fuel Consumption at Max. Engine Power: 0.67 L/h • Connection Rod: Forged Steel
• 13mm Chuck • Petrol/Oil Ratio: 50:1
www.specialisedforce.com.au
• Max Bit Size: 25mm Wood • Carburetor: Walbro - Diaphragm Type
• Complies with Australian Emission Laws • Noise Level: 79DB

Model No. Description
PRO-TED260RS Petrol Drill with 13mm Keyless Chuck (Supplied Standard)
EDR2400-EXT Male & Female threaded Extension Shaft 360mm
0593212091 13mm Capacity Keyed Chuck

PRO-TED260RS Shown with Extension
EDR2400-EXT
