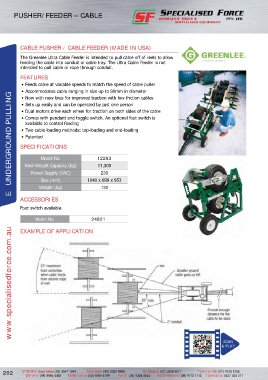

Page 212 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUSHER/FEEDER – CABLE

CABLE PUSHER / CABLE FEEDER (MADE IN USA)

The Greenlee Ultra Cable Feeder is intended to pull cable off of reels to allow
feeding the cable into conduit or cable tray. The Ultra Cable Feeder is not
intended to pull cable or rope through conduit.
FEATURES
• Feeds cable at variable speeds to match the speed of cable puller
• Accommodates cable ranging in size up to 90mm in diameter
E UNDERGROUND PULLING
• Now with new tires for improved traction with low friction cables
• Sets up easily and can be operated by just one person
• Dual motors drive each wheel for traction on both sides of the cable
• Comes with pendant and toggle switch. An optional foot switch is
available to control feeding
• Two cable loading methods: top-loading and end-loading
• Patented

SPECIFICATIONS

Model No. 12293
Reel Weight Capacity (kg) 11,300
Power Supply (VAC) 230
Size (mm) 1040 x 699 x 953
Weight (kg) 130

ACCESSORIES

Foot switch available

Model No. 24821

www.specialisedforce.com.au
EXAMPLE OF APPLICATION
